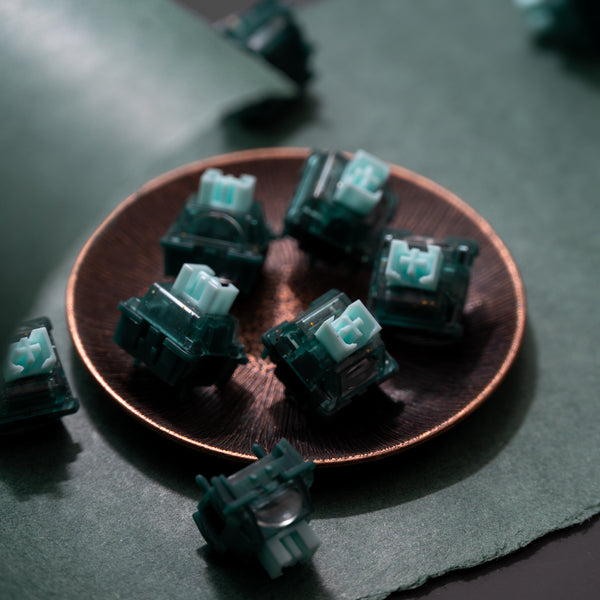

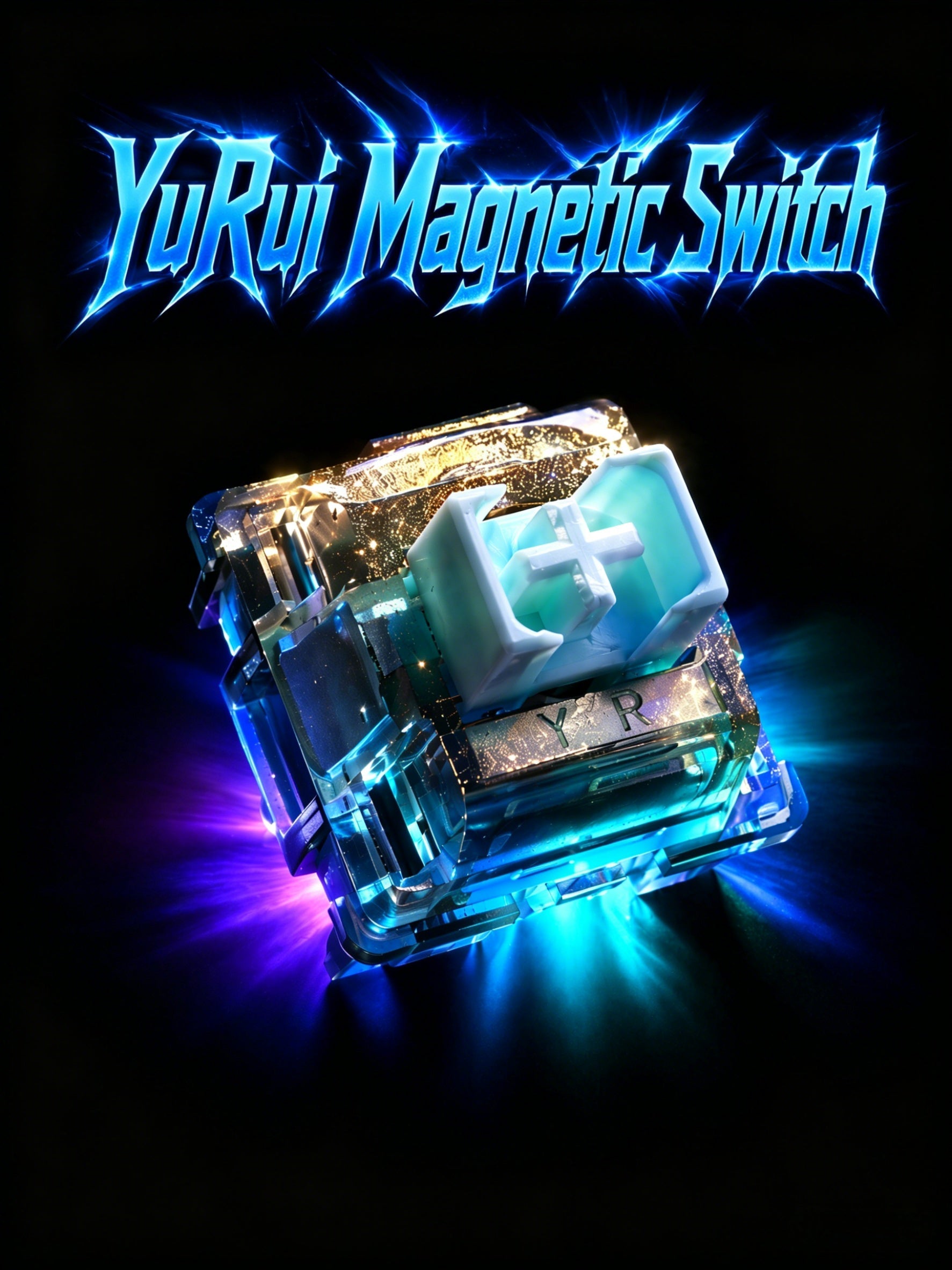

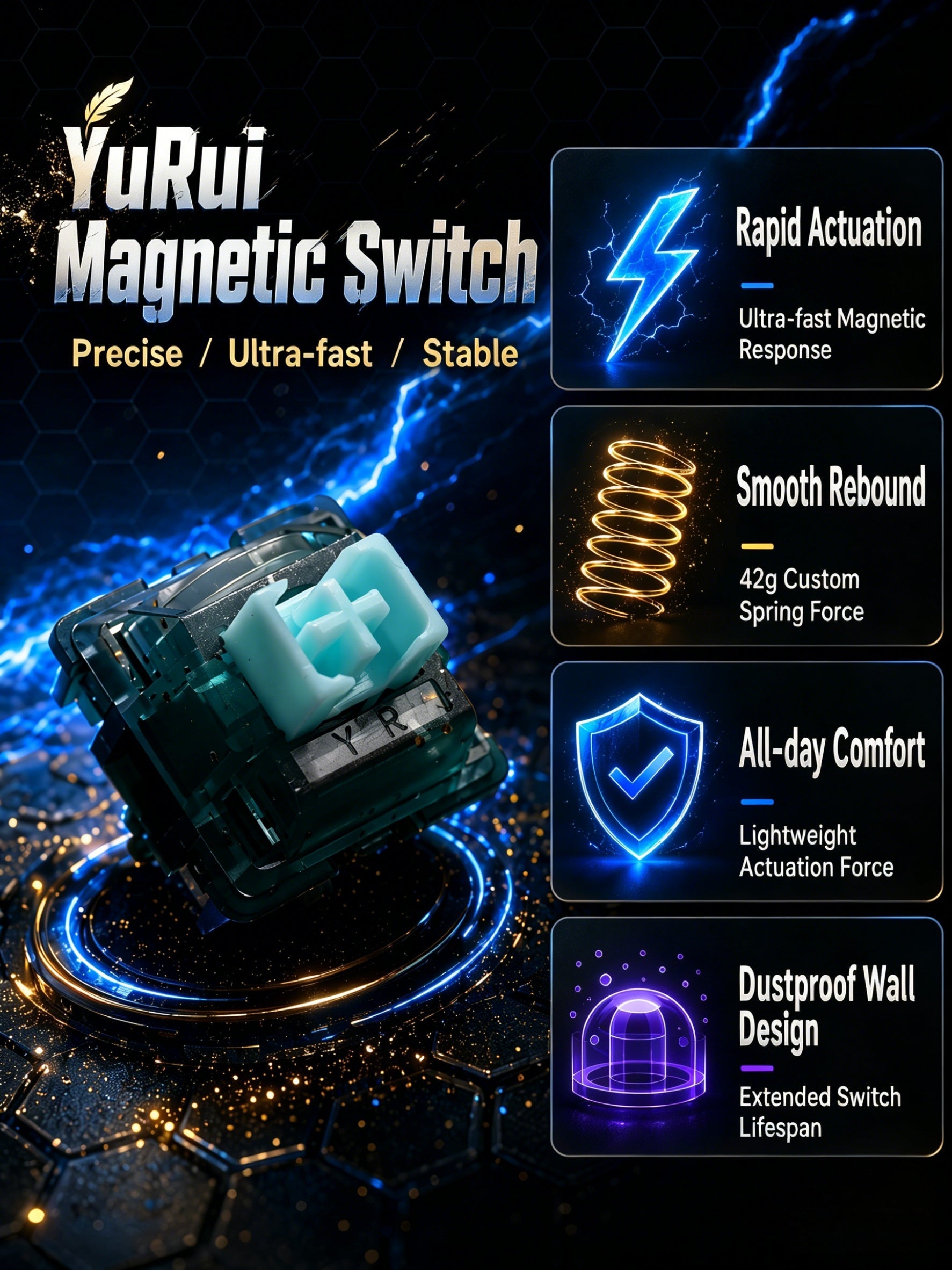

YuRui HE Magnetic Switches (10 Pack)
YuRui HE switches are lightweight magnetic switches designed for compatible Hall Effect keyboards using N-pole down magnetic orientation. Designed by Moyu studio these are intended to be amazing value and great for RGB.

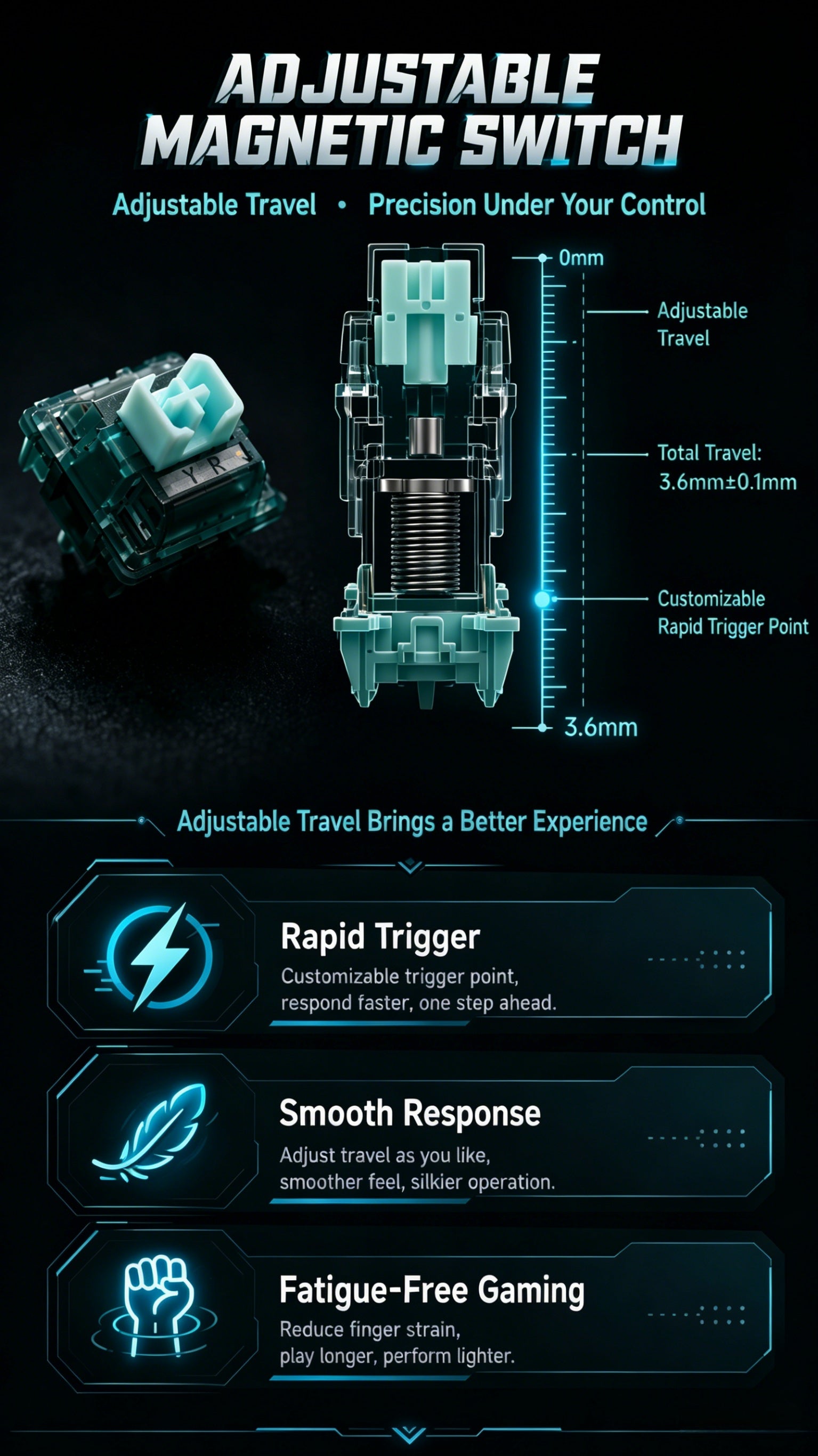

They are smooth, light linears with 37g operating force and 42g bottom-out. These are perfect for gaming. Their 3.6±0.2mm total travel gives them a slightly shorter stroke than a traditional full-travel MX mechanical switch, while factory lubrication helps keep the travel smooth straight out of the bag. The factory lubrication is deliberately light, focussing on keeping the switch fast.

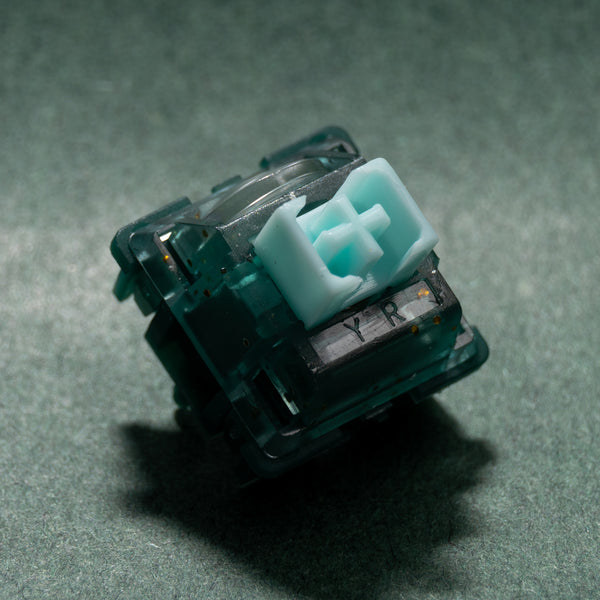

The material combination is clean and familiar: a polycarbonate top housing, nylon bottom housing and POM stem. That gives YuRui HE a crisp, modern magnetic-switch feel with a stable return and a smooth linear press.
These are a strong choice if you want an affordable, lightweight HE switch for rapid-trigger compatible keyboards. If you prefer a deeper sound, they benefit significantly from 205g0 in very light amounts on the rails.
Compatibility note
YuRui HE switches are magnetic Hall Effect switches, not standard MX mechanical switches. They are designed for compatible HE keyboards and will not work in normal MX hot-swap mechanical PCBs.
Please check that your keyboard supports N-pole down magnetic switches before ordering.
Moyu lists compatibility with keyboards/platforms from brands including Wooting, SteelSeries, Corsair, Rakka, Nuphy, Melgeek, KBDfans, Matrix Lab, Venom, and more, but compatibility can still vary by board, firmware and switch orientation.

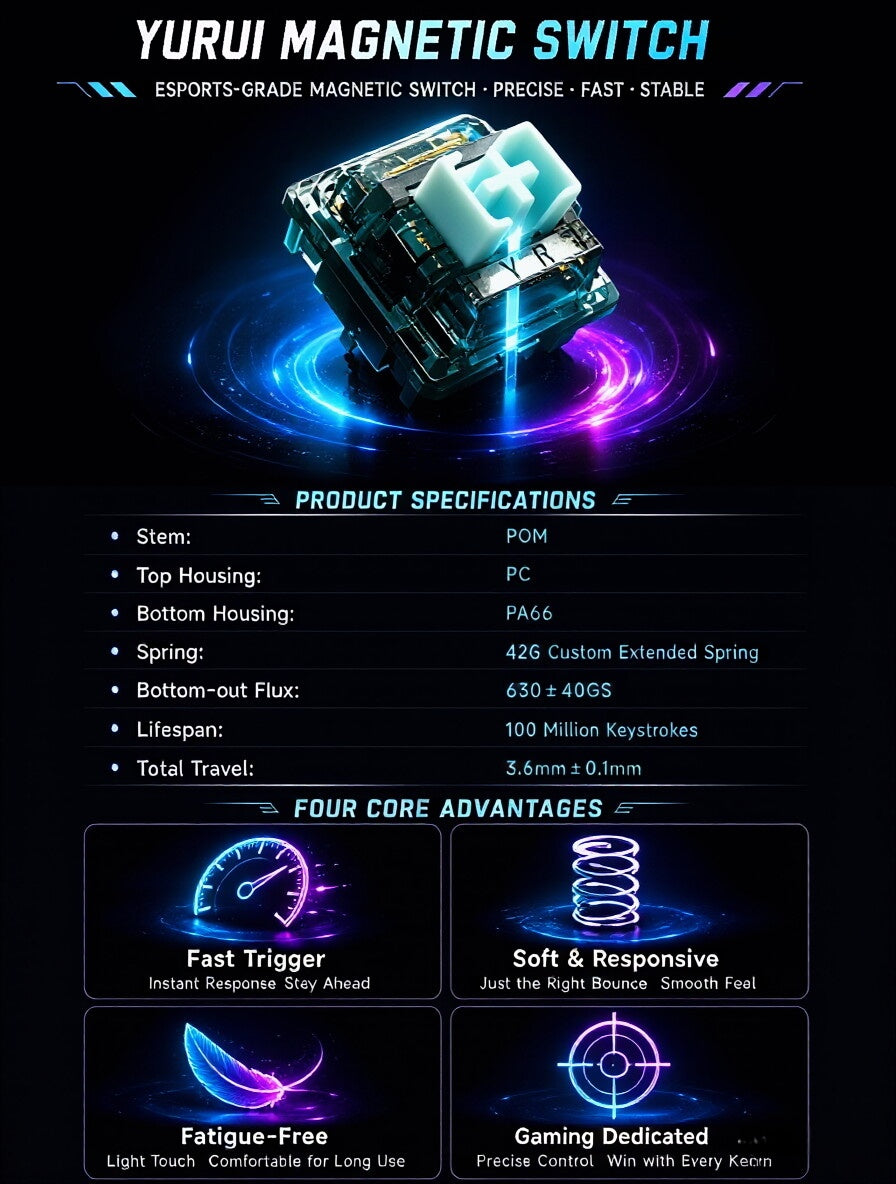

Specifications
| Spec | Detail |
|---|---|
| Switch type | Magnetic / Hall Effect |
| Feel | Linear |
| Top housing | PC |
| Bottom housing | Nylon |
| Stem | POM |
| Spring | 20mm |
| Operating force | 37±2g |
| Bottom-out force | 42±2g |
| Total travel | 3.6±0.2mm |
| Magnetic flux | 630±40GS |
| Factory lubrication | Yes |
| Magnetic orientation | N-pole down |
| Pack size | 10 switches |
