HX40 MX - 40% Keyboard Group Buy

A Modern Tribute to Retro Minimalism

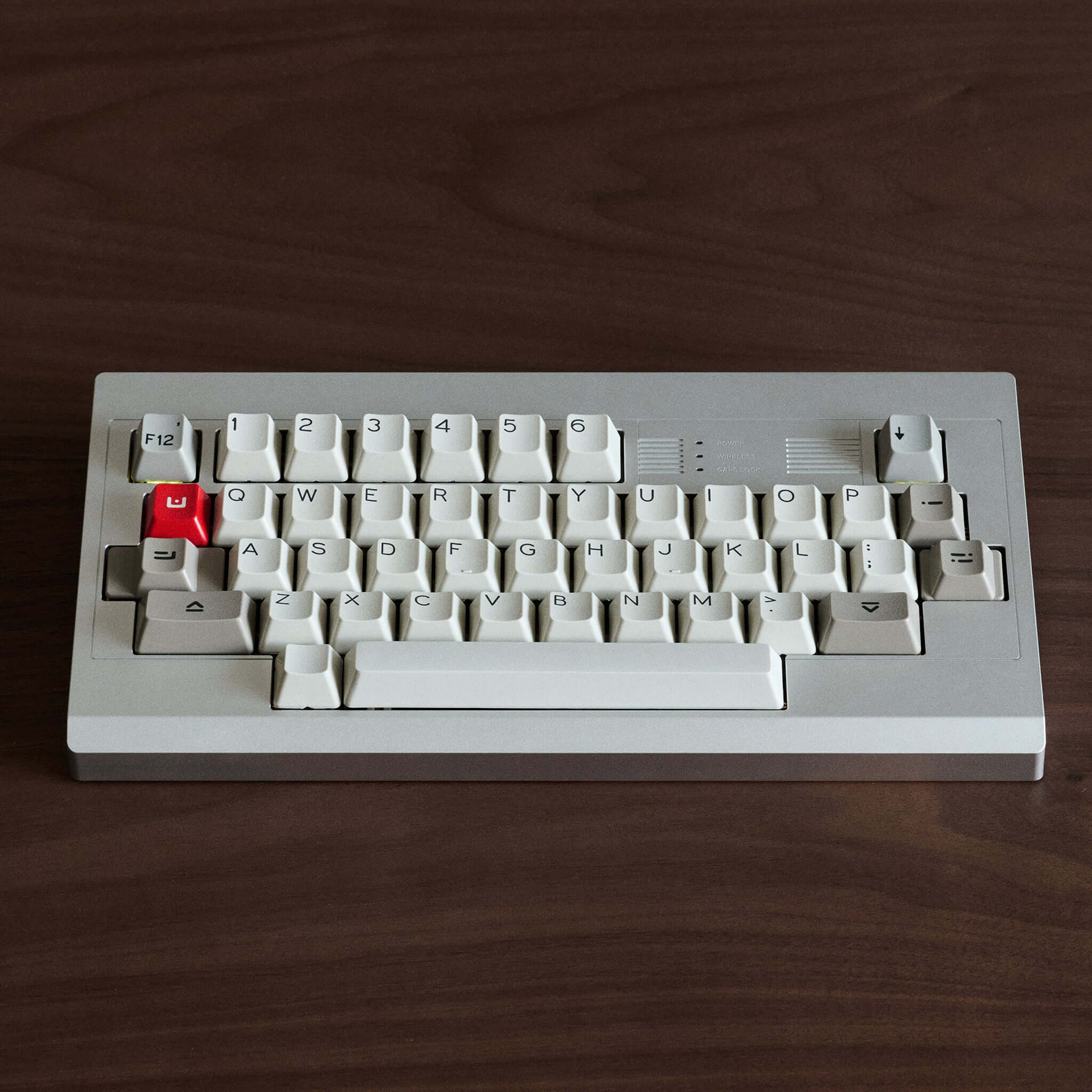

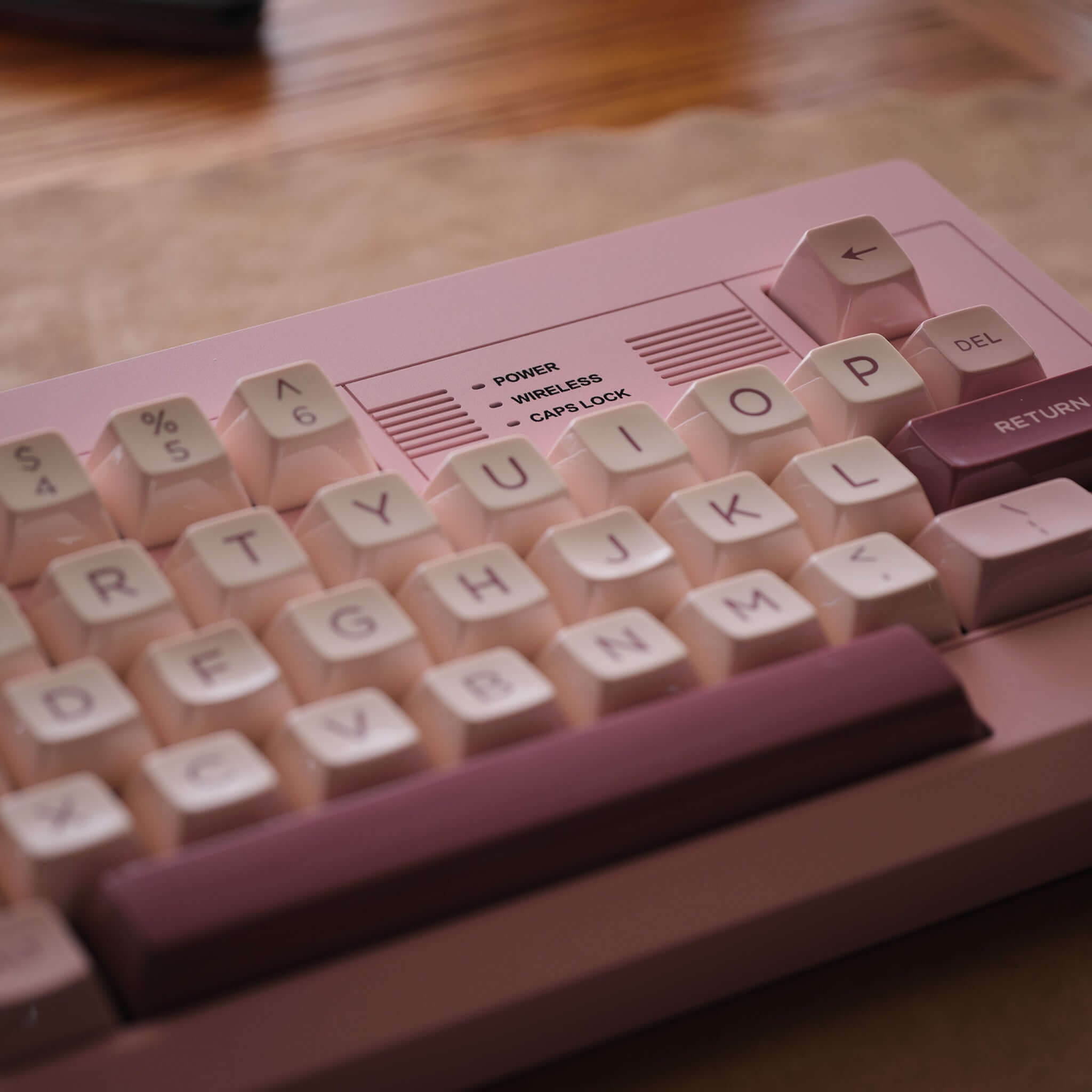

The HX40 is a unique and feature-rich 40% keyboard kit inspired by the iconic Epson HX-20, updated with a refined modern profile and flexible internals. This is a low-profile, ultra-compact layout that offers the essentials (and the extra keys for those who can use layers) to maximise desk space and portability.

With support for MX and EC, dual/tri-mode connectivity options, and multiple case colours and plate materials, the HX40 adapts to your feel and sound preferences. This listing is for the MX keyboard kit only.

This is a Group Buy product. Group Buy ends November 15th, with fulfilment estimated around March 2026 (subject to manufacturer production timelines). We will then ship the units out the day we receive them in the UK after our usual careful quality checks.

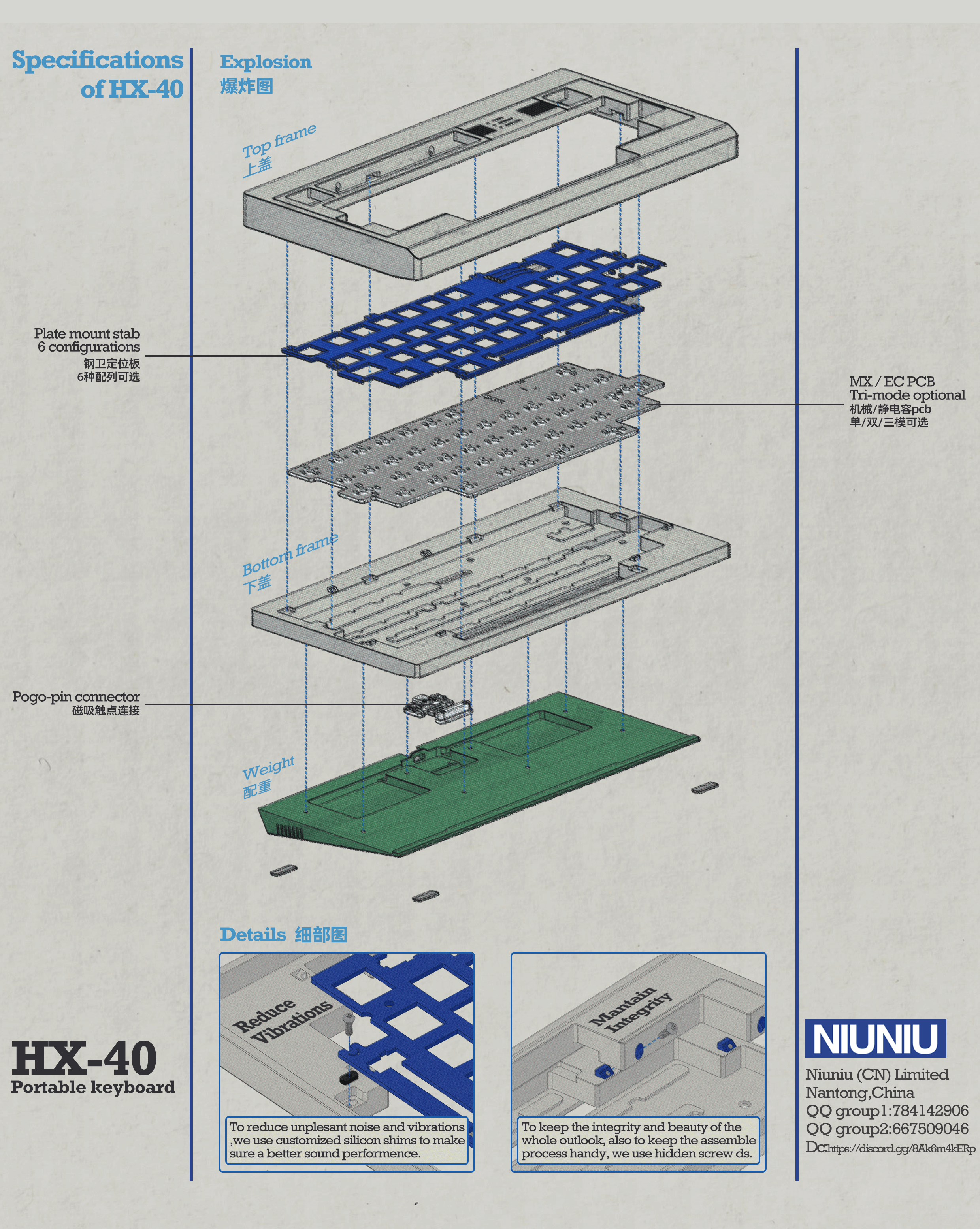

Kit Contents

Each kit includes:

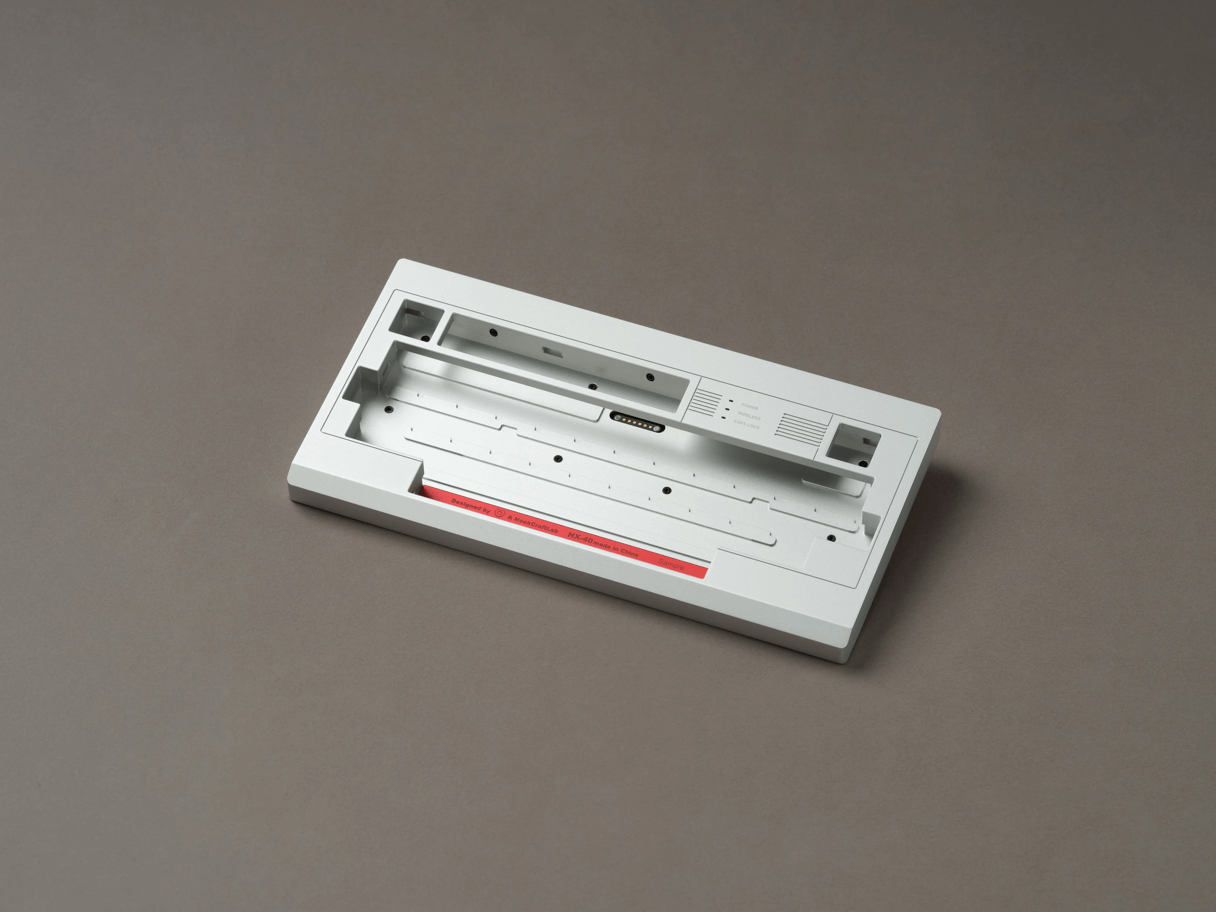

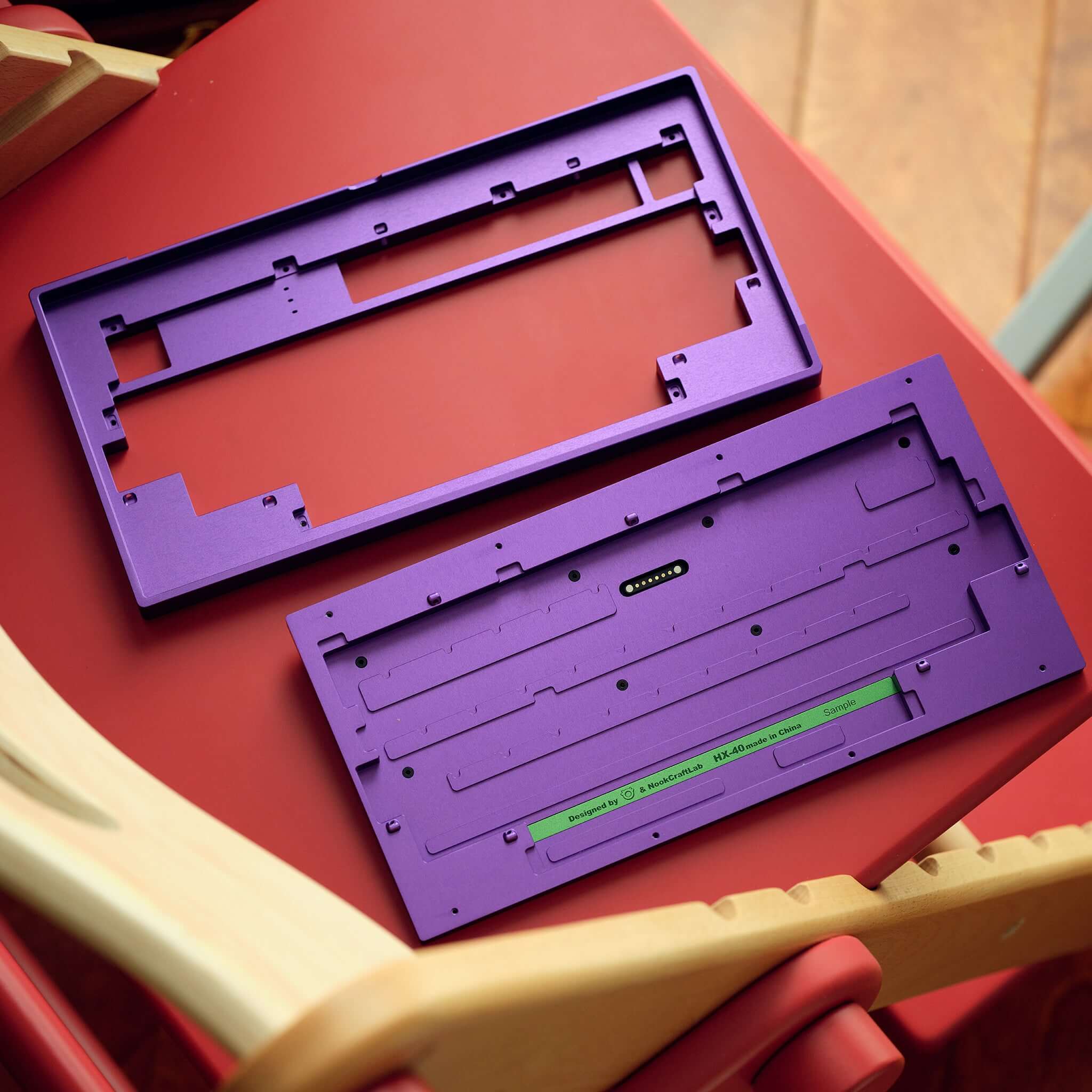

• 1x Top Case

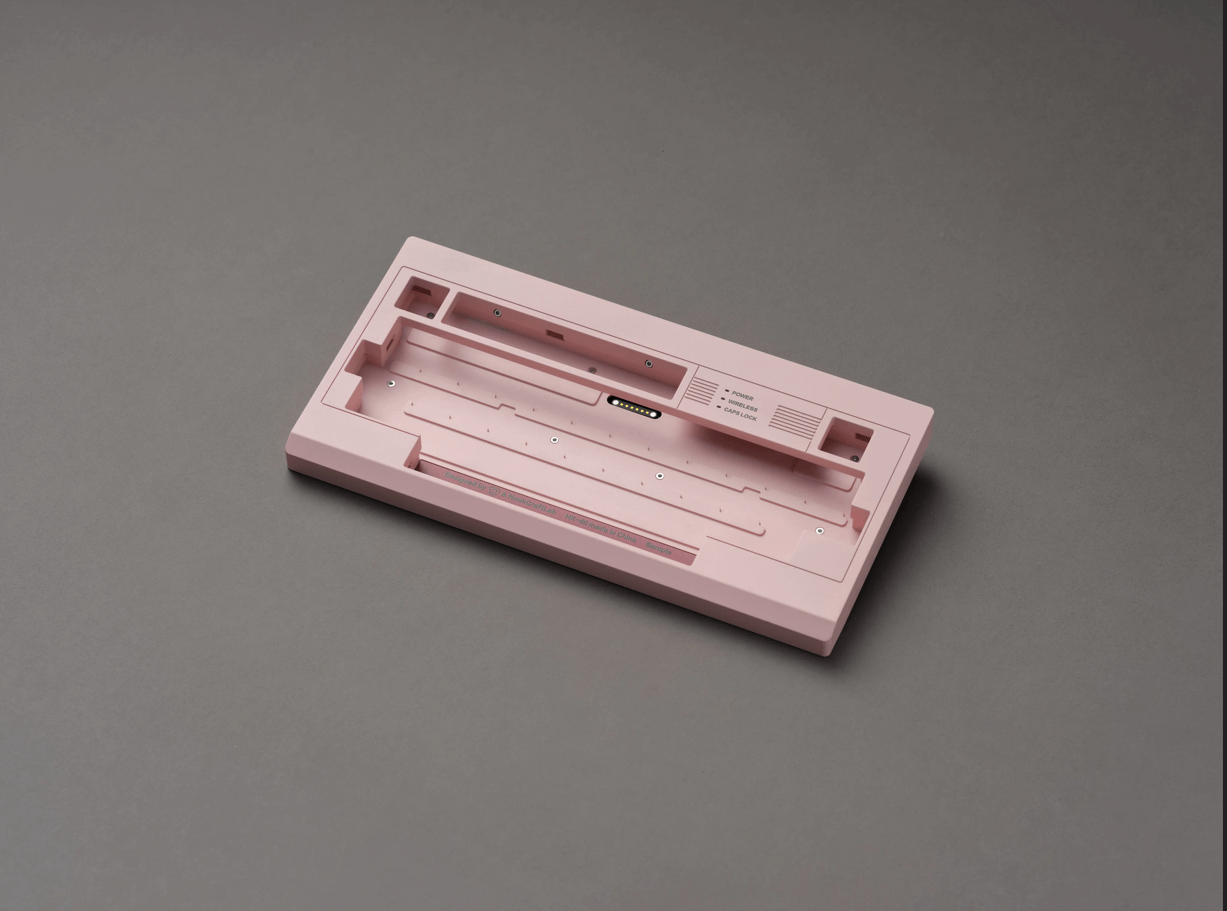

• 1x Bottom Case

• 1x FR4 Plate (Standard)

• 1x Weight Bar

• 1x PCB of choice

• 1x Gasket

• 1x Indicator Diffuser

• 1x Carrying Case

• 1x Set of Screws

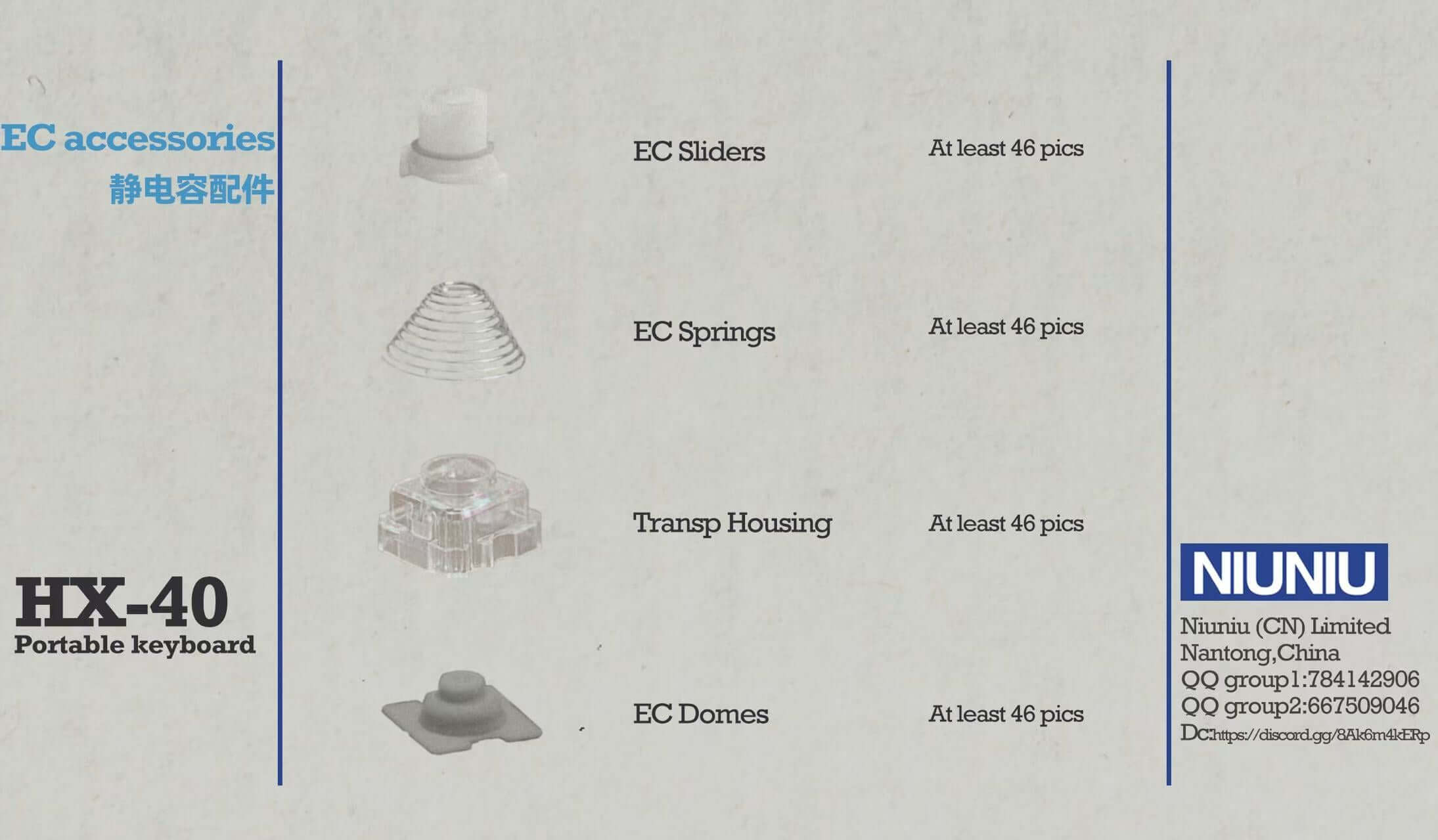

• If EC version selected:

  • 46x EC Sliders

  • 46x EC Springs

  • 46x EC Domes (30g)

  • 46x EC Housings

PCB & Connectivity Options

• MX Hot-swap (Single Mode, USB-C Wired)

• EC Dual Mode (Wireless + Wired)

• EC Tri Mode (2.4GHz + Bluetooth + Wired)

PLEASE NOTE - if you purchase a dual mode or tri-mode PCB, you will need to purchase and install 2 x 503860 batteries yourselves as these cannot be shipped to us from China without significant delays to all other units. Pricing for those PCBs does not include the batteries.

All PCBs support QMK/VIAL firmware.

EC builds are compatible only with stainless steel plates.

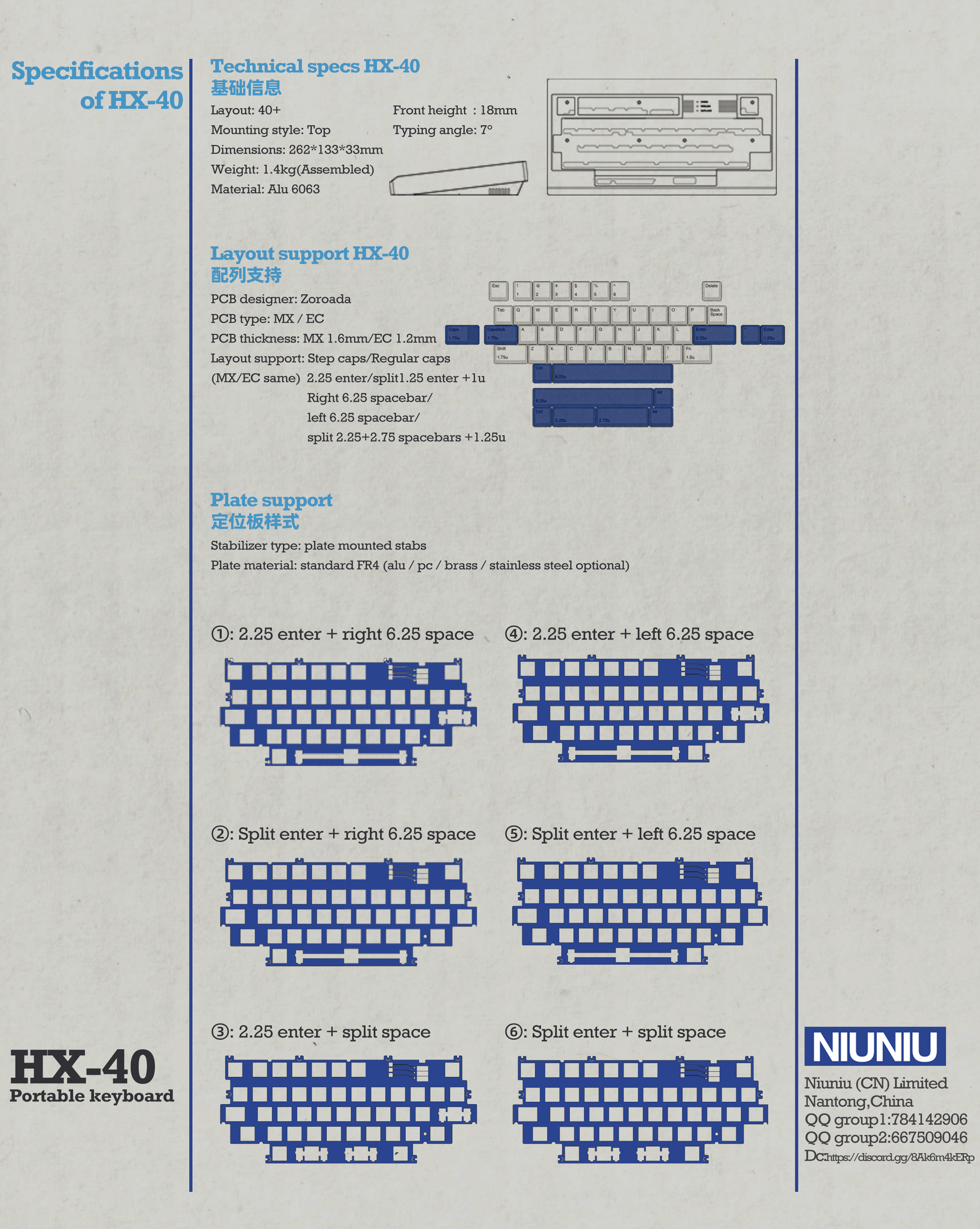

Layout & Compatibility

• ANSI layout only (ISO not supported)

• Split spacebar support

• Left or right-aligned spacebars

• 2.25U or split Enter compatibility

• EC builds are not compatible with PCB clip in stabilizers

📸 Please carefully review product images to confirm supported layouts before purchasing.

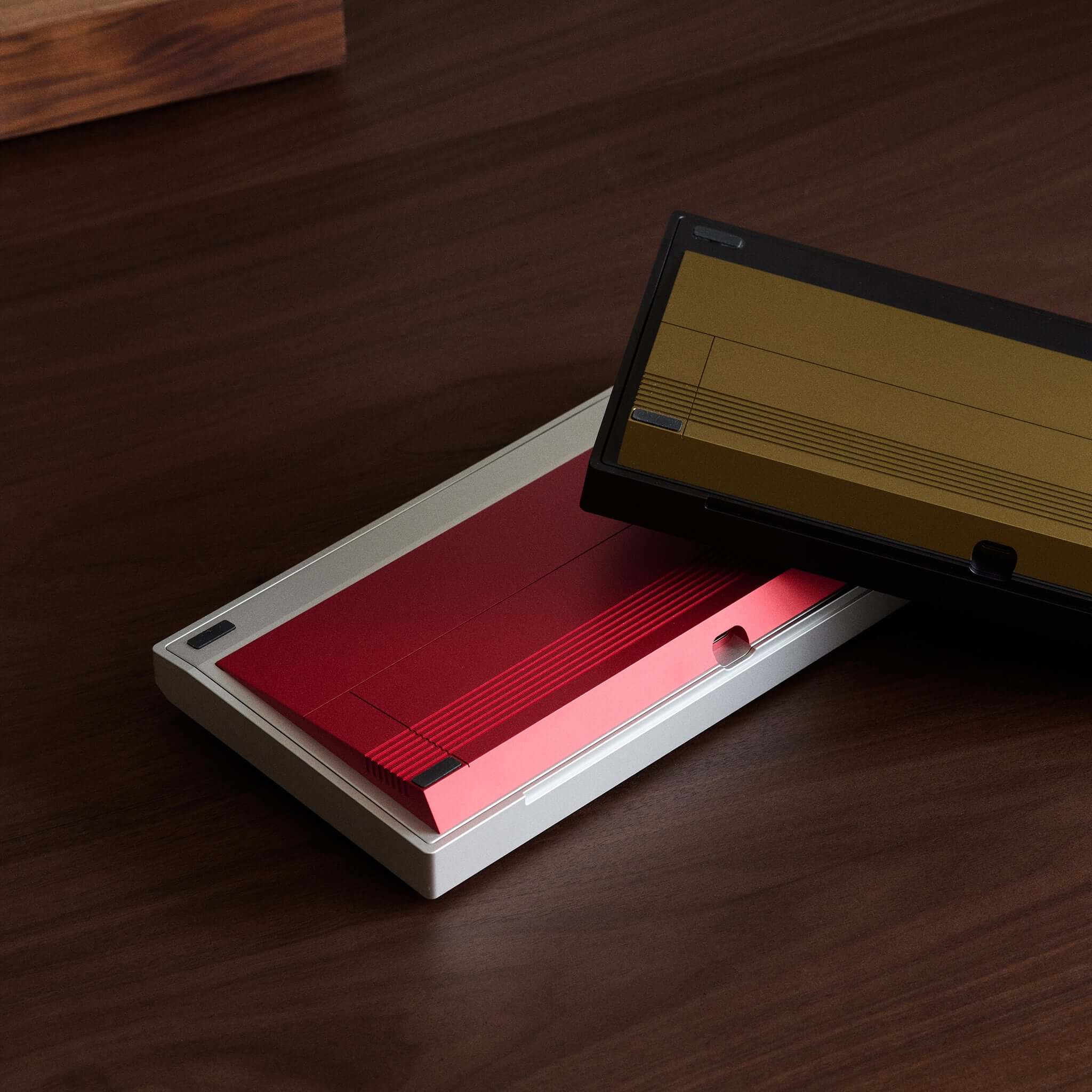

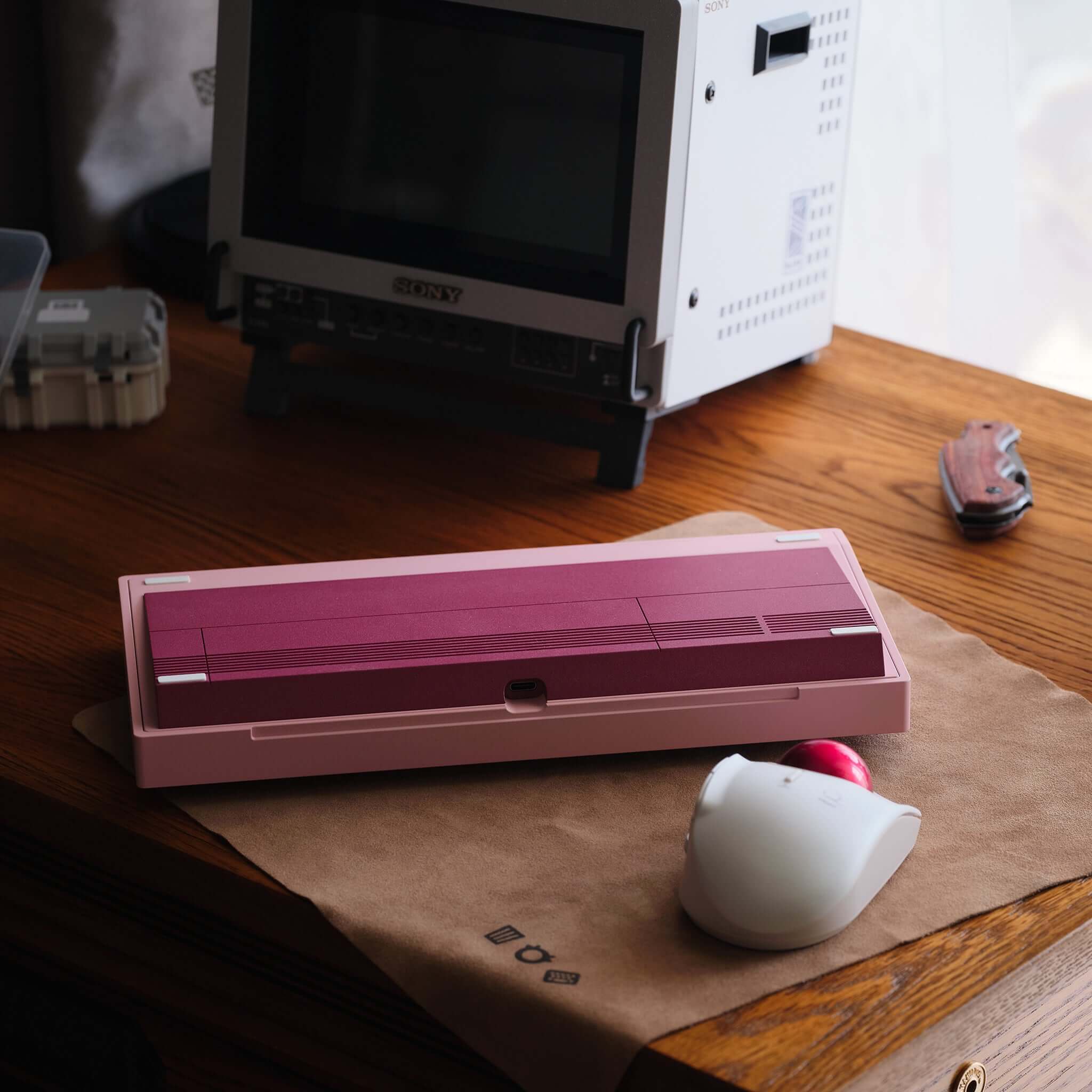

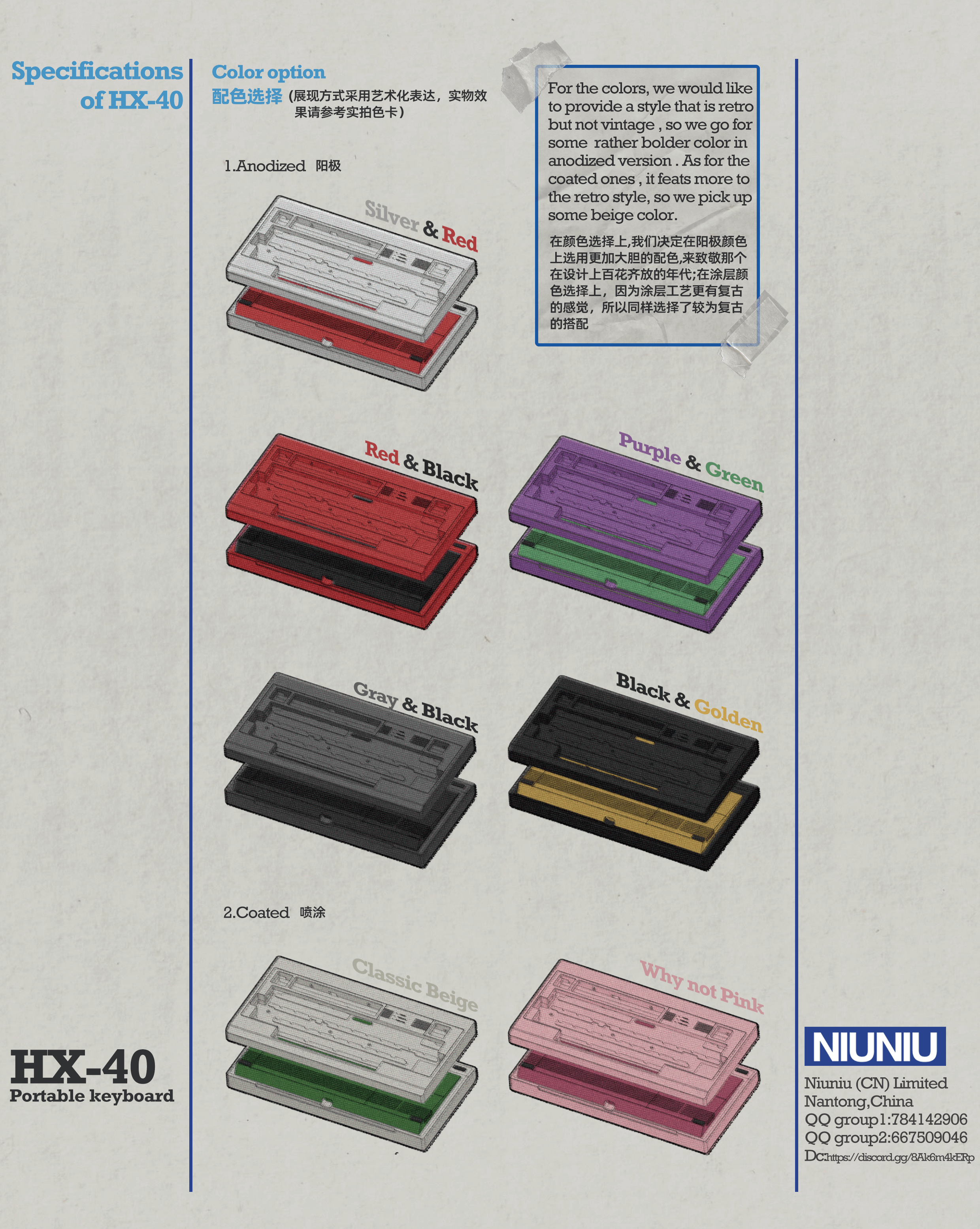

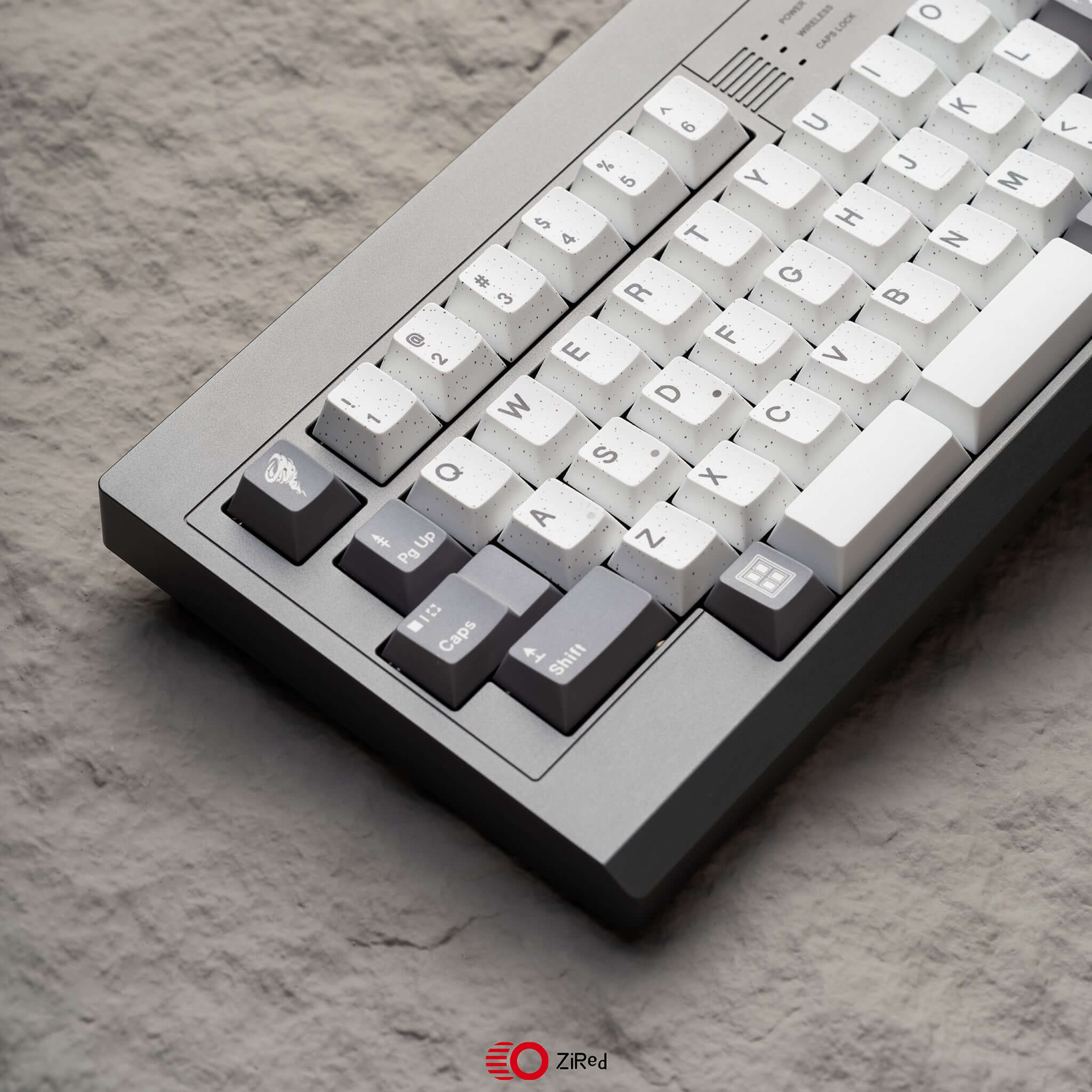

Case Colours

Choose from seven anodized or coated finishes:

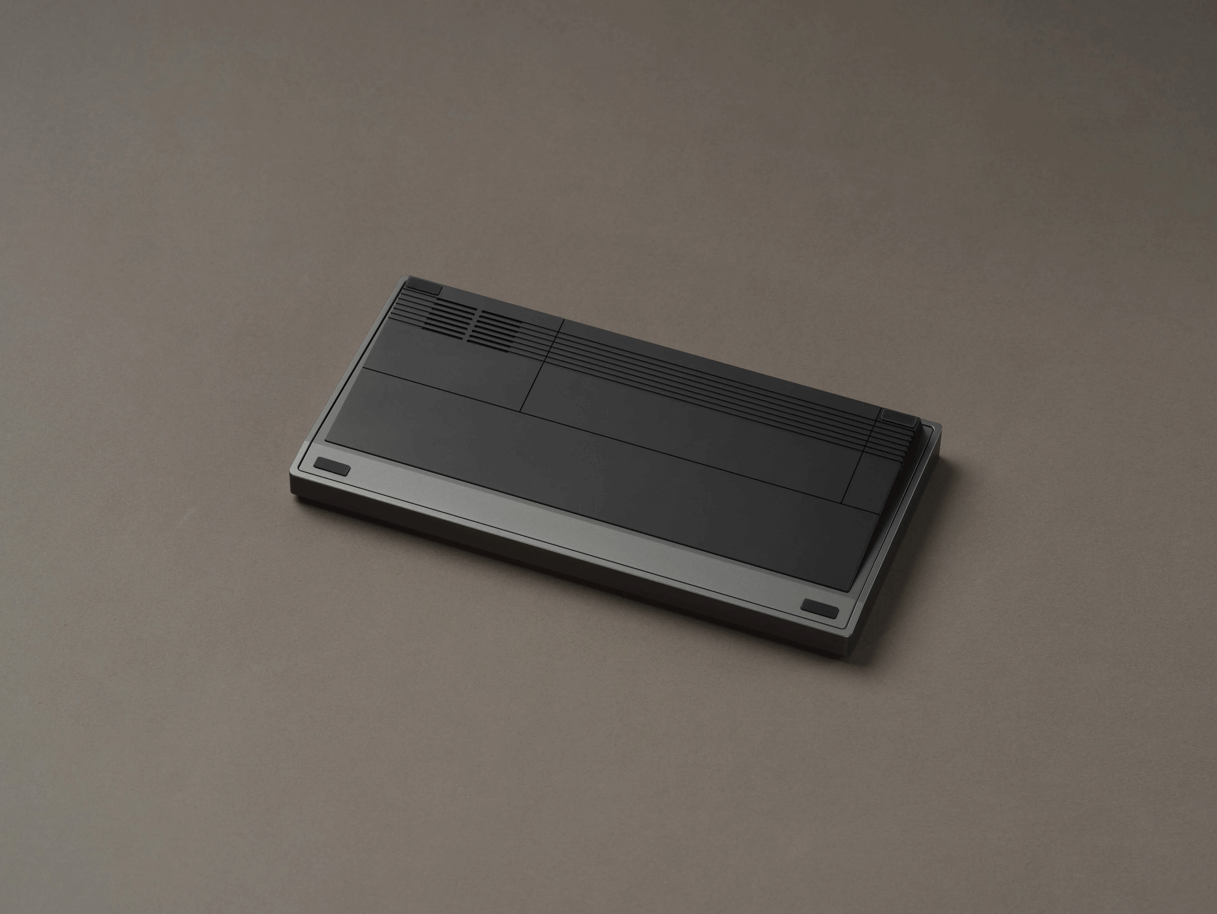

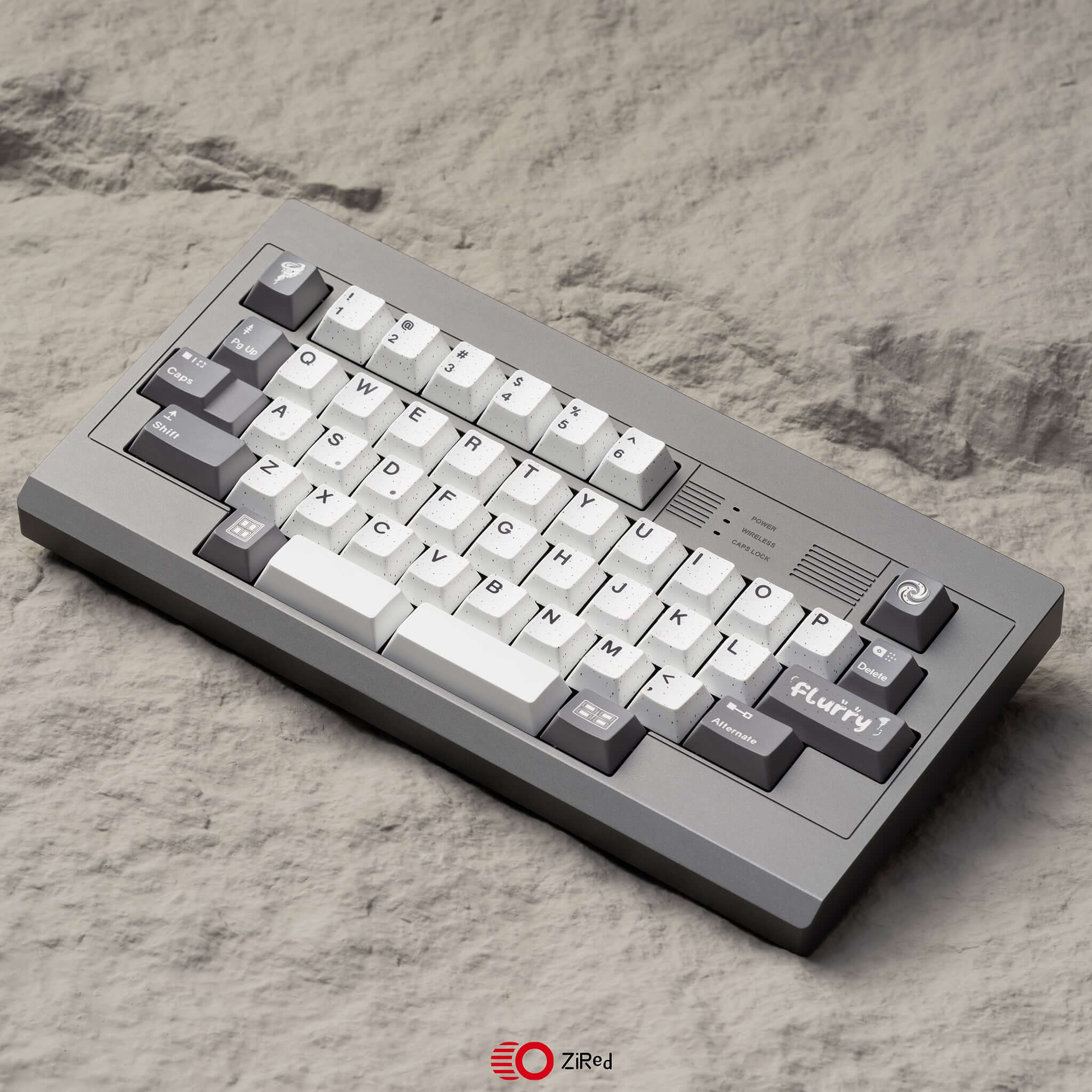

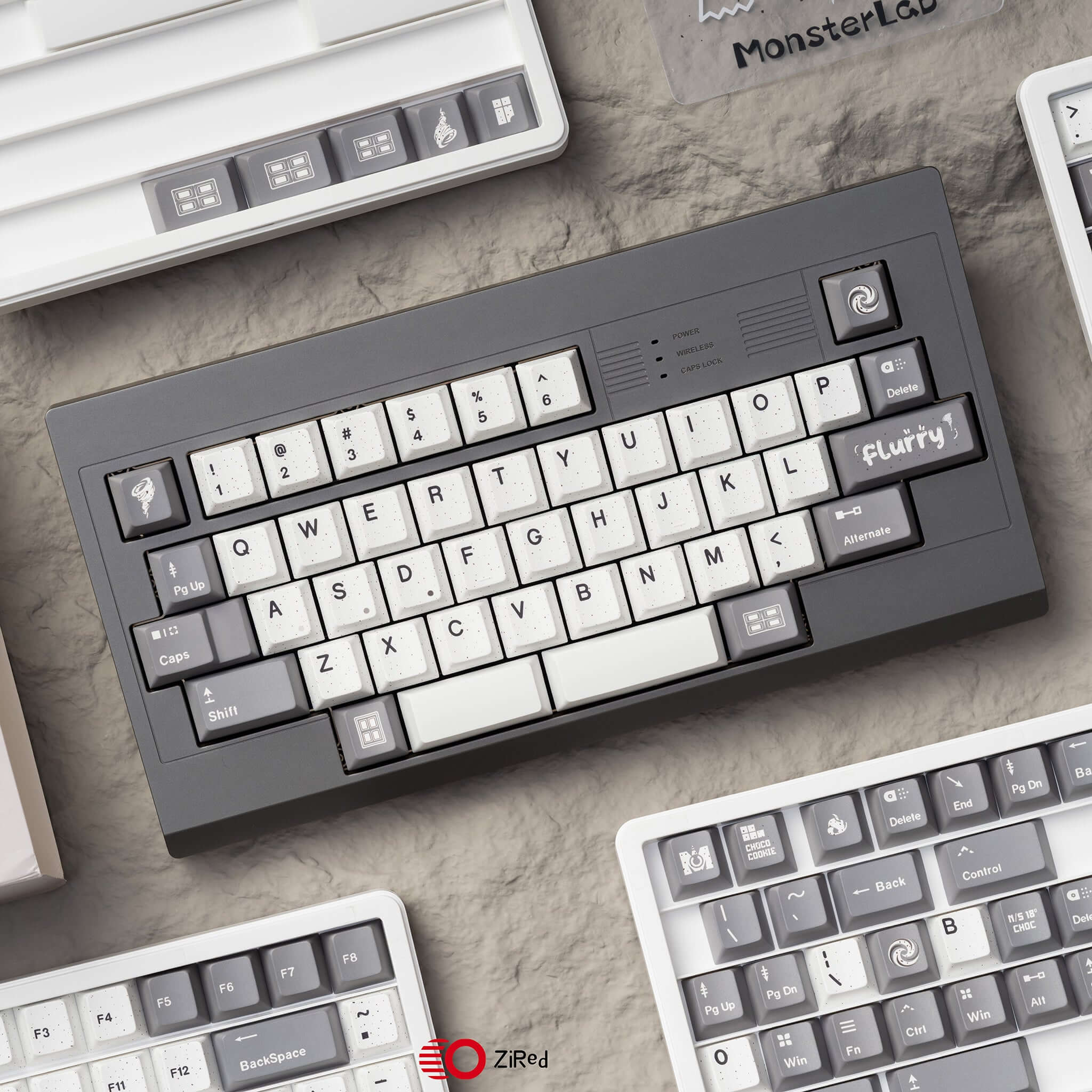

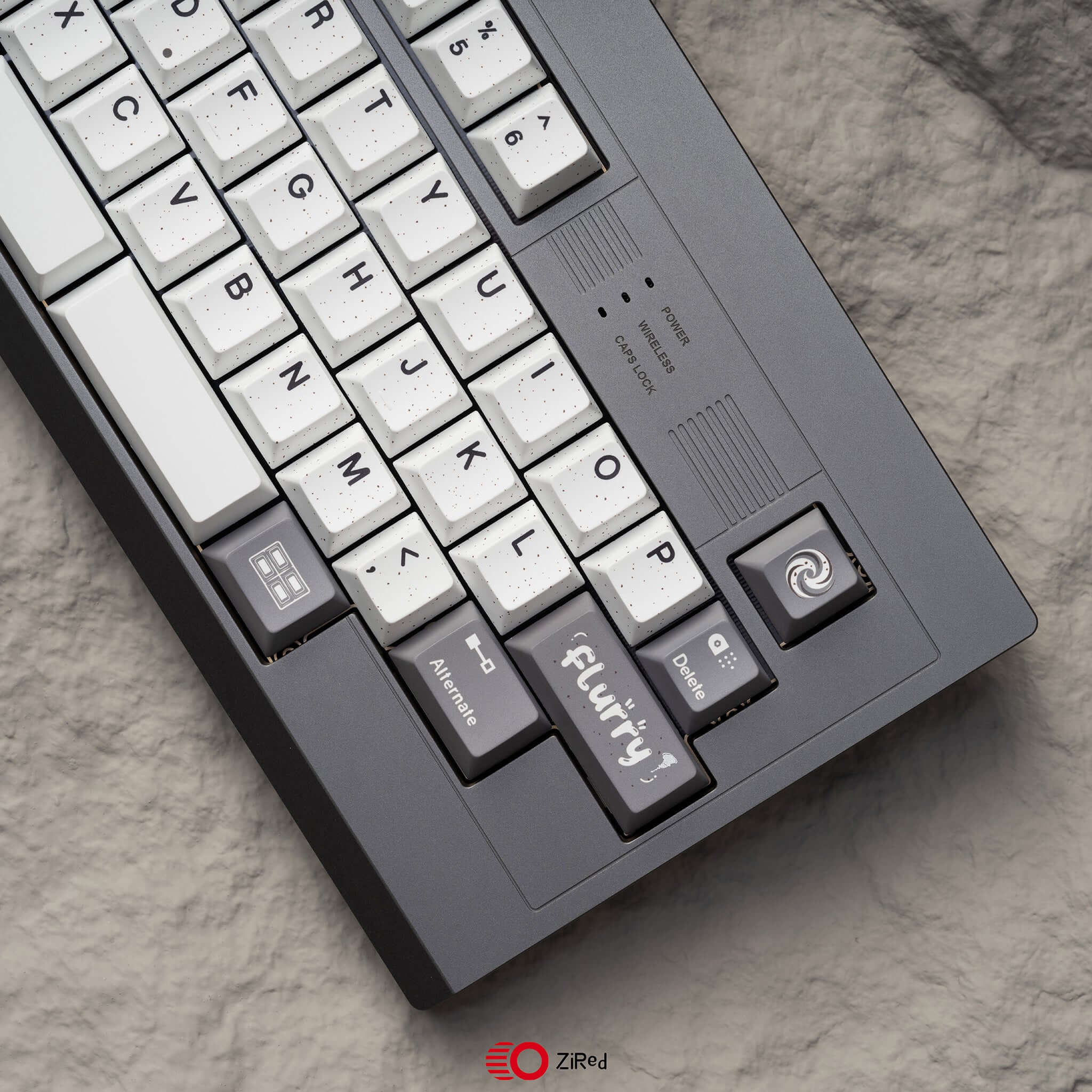

• Grey (Black Weight)

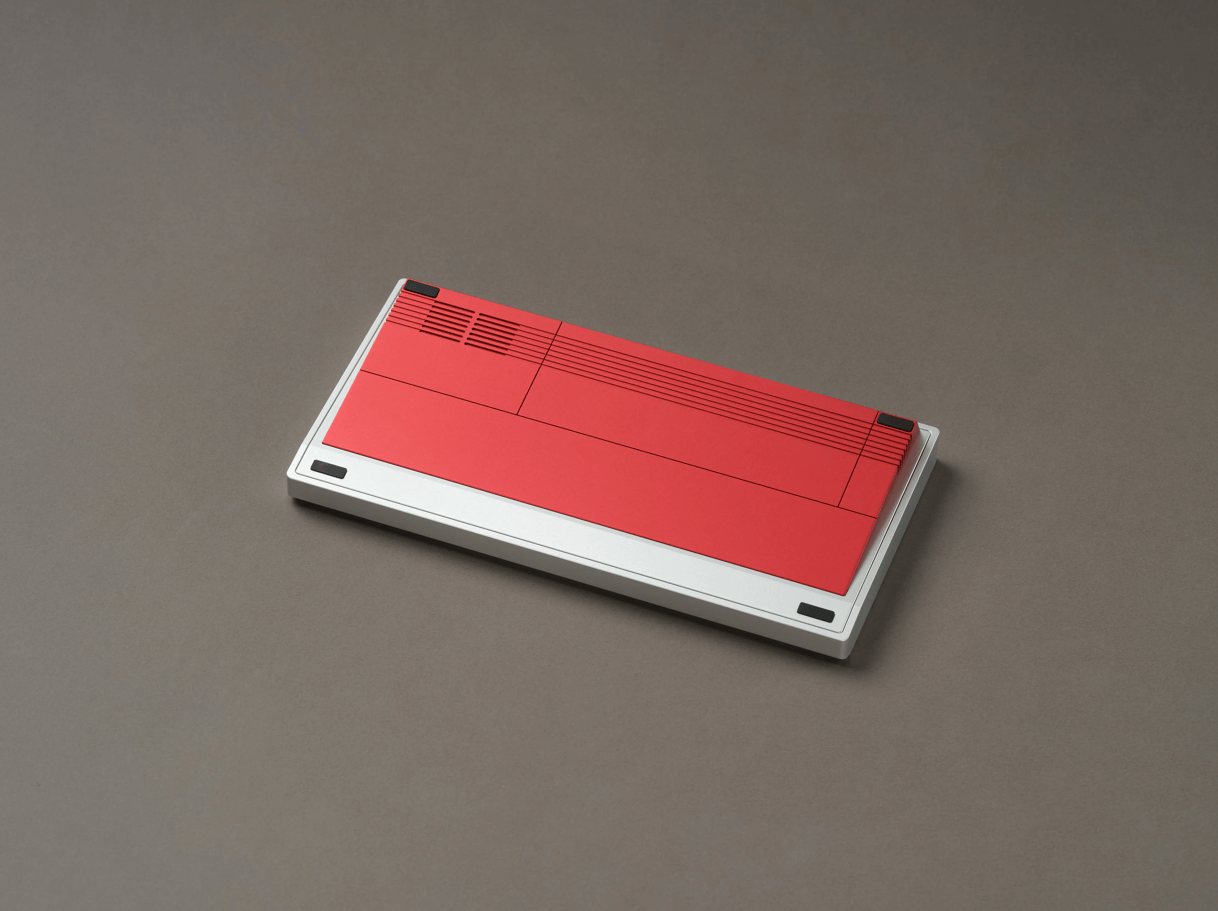

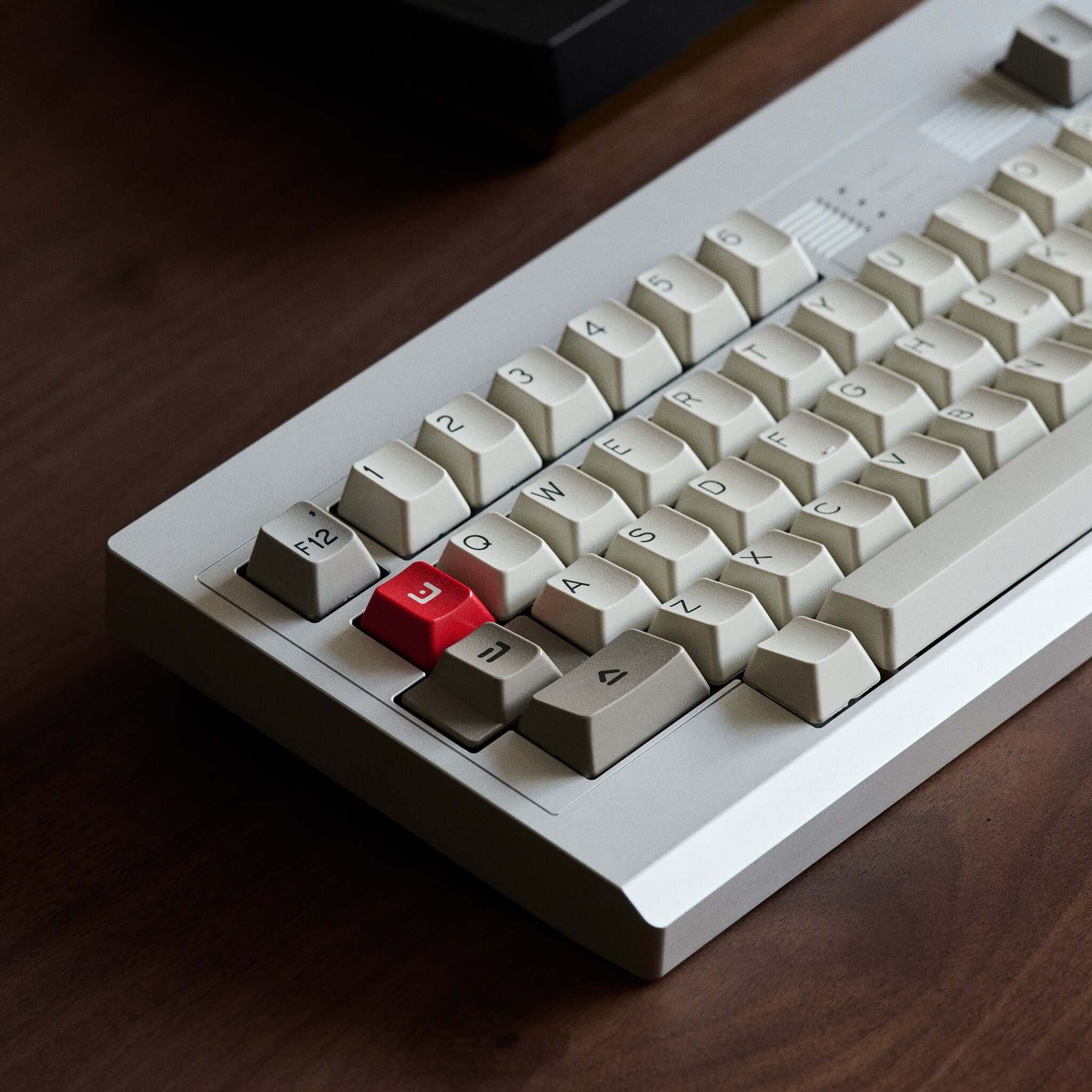

• Silver (Red Weight)

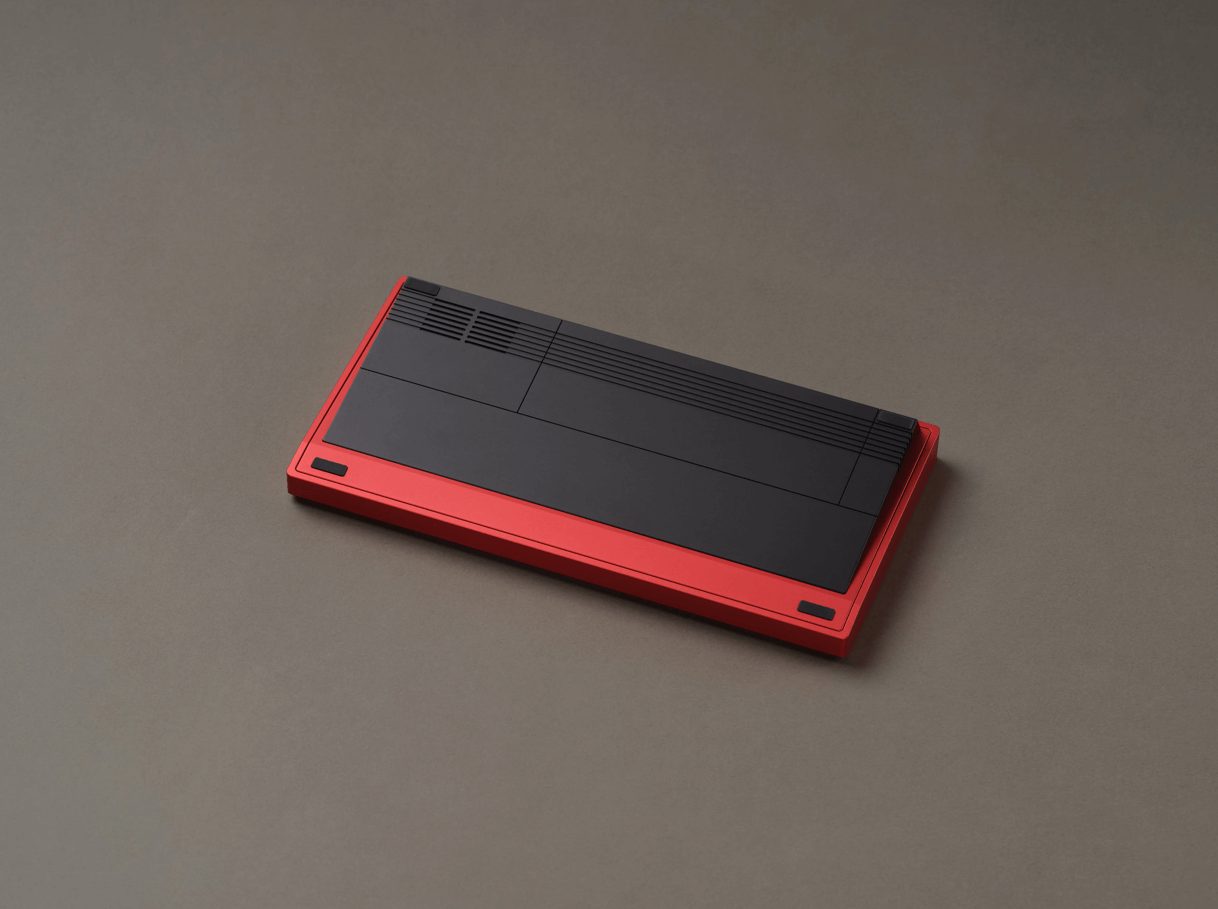

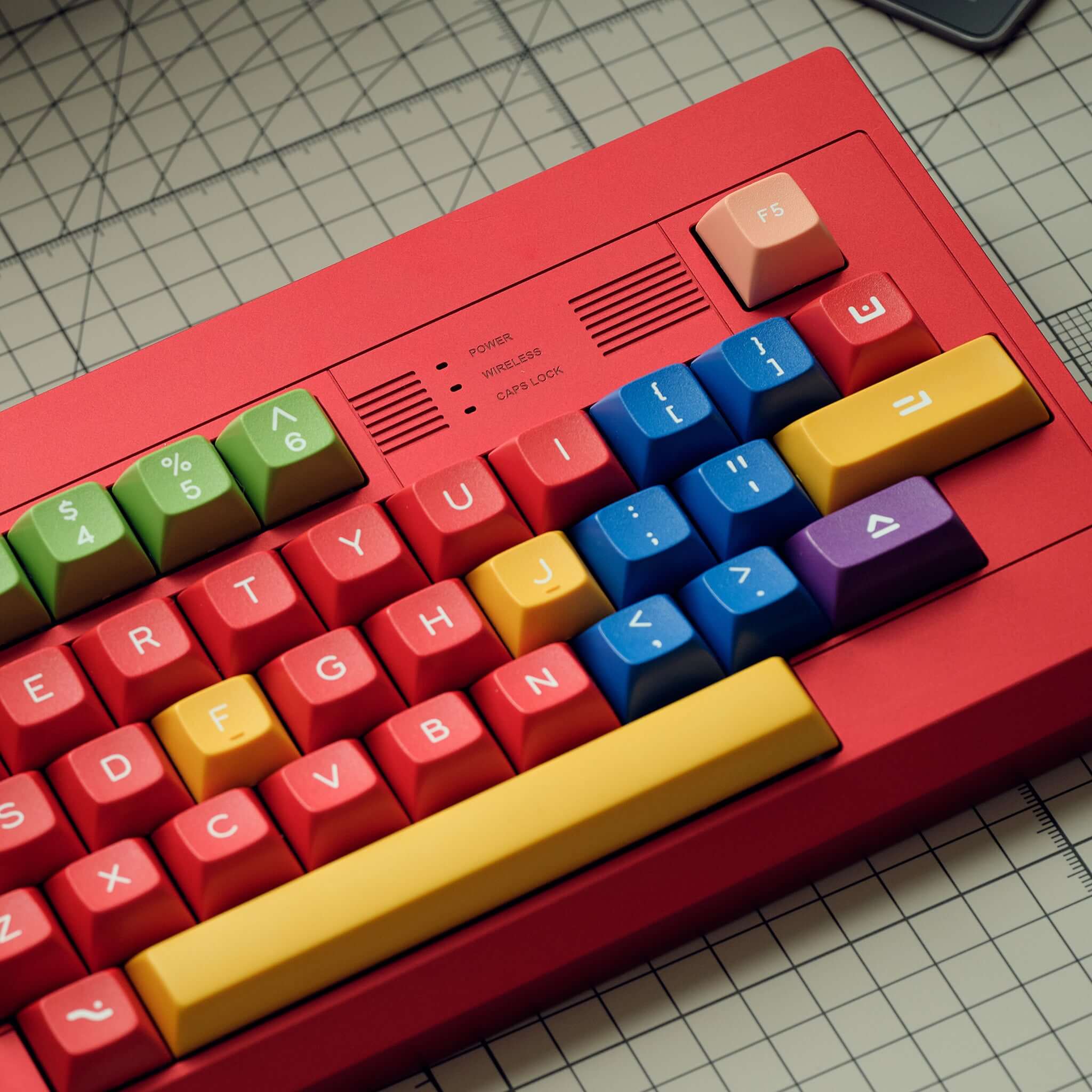

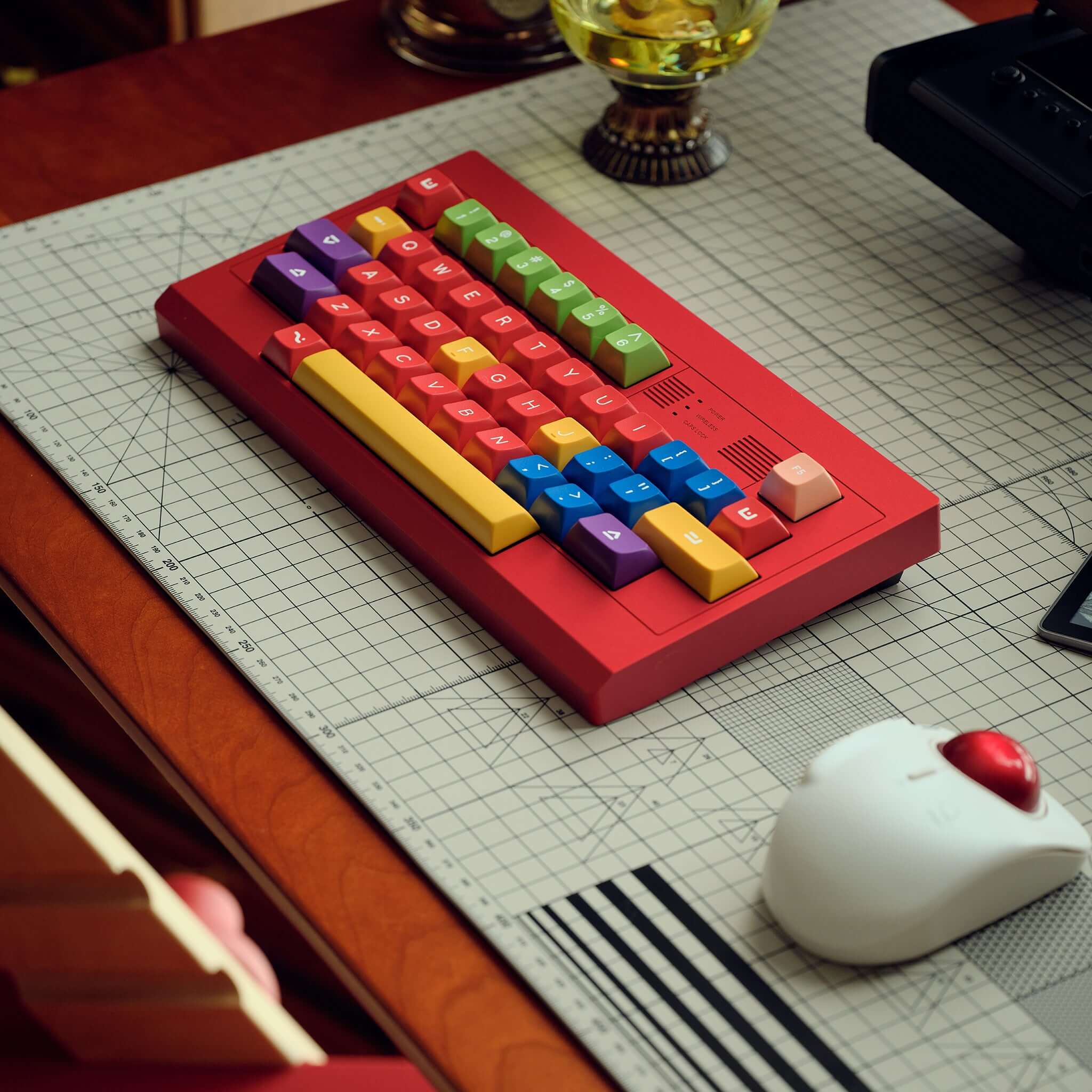

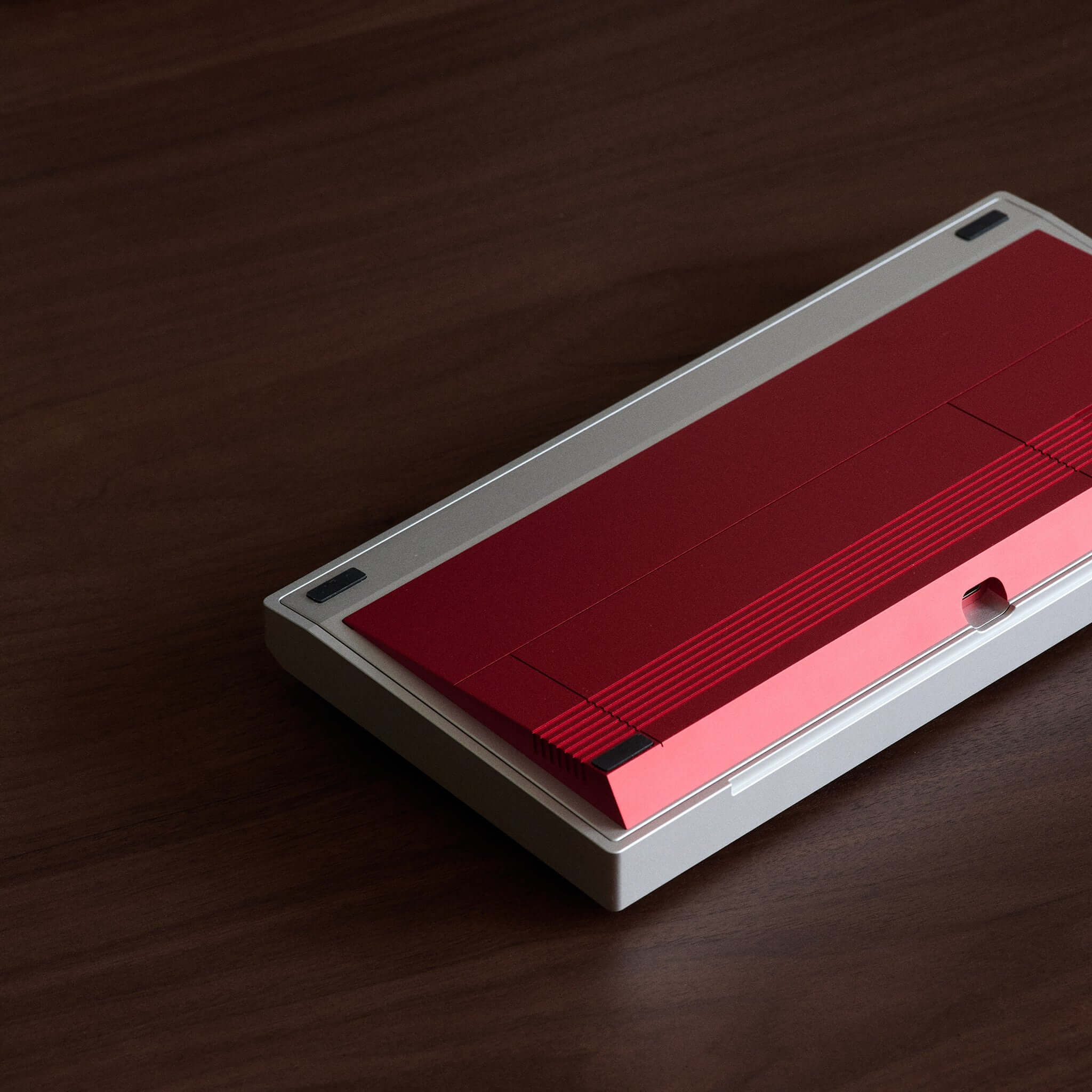

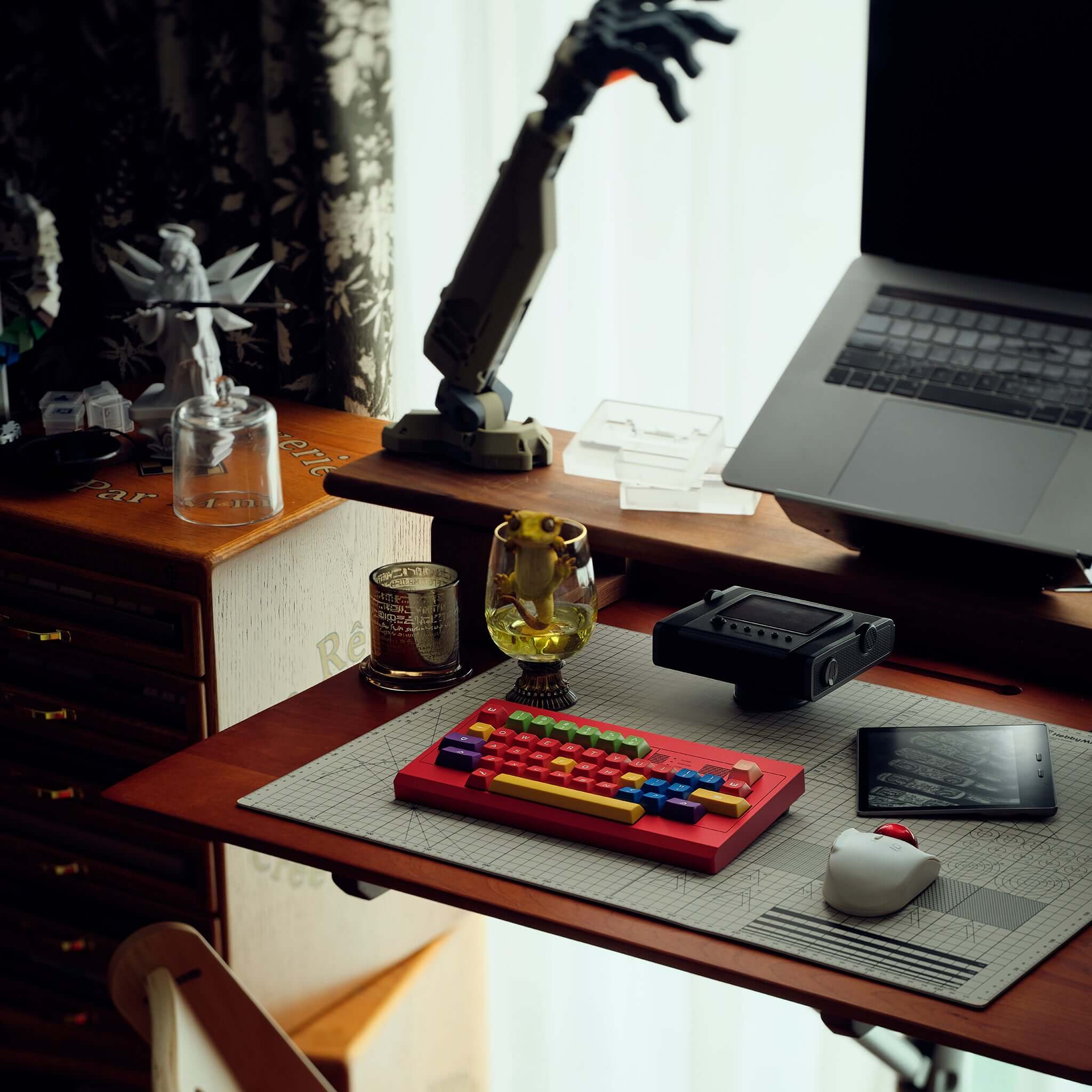

• Red (Black Weight)

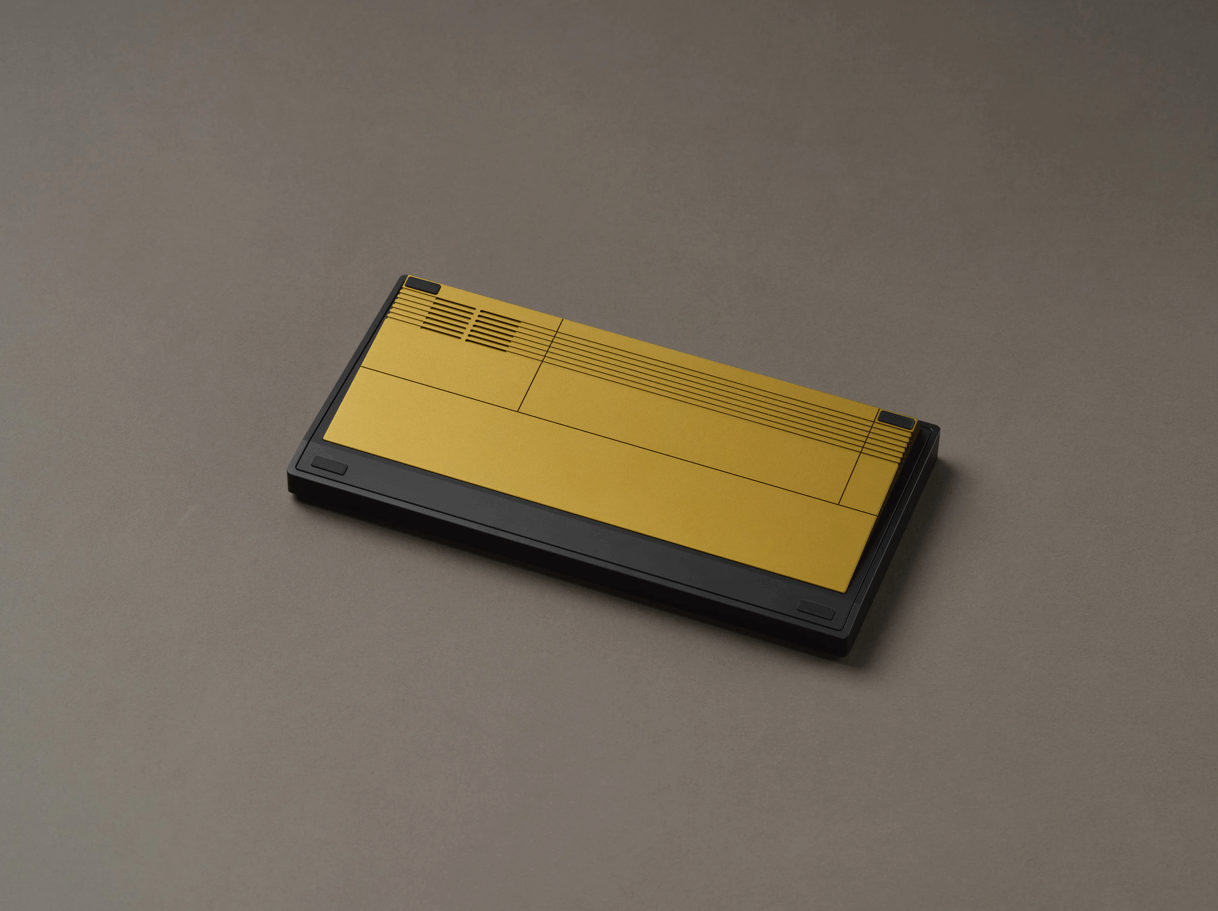

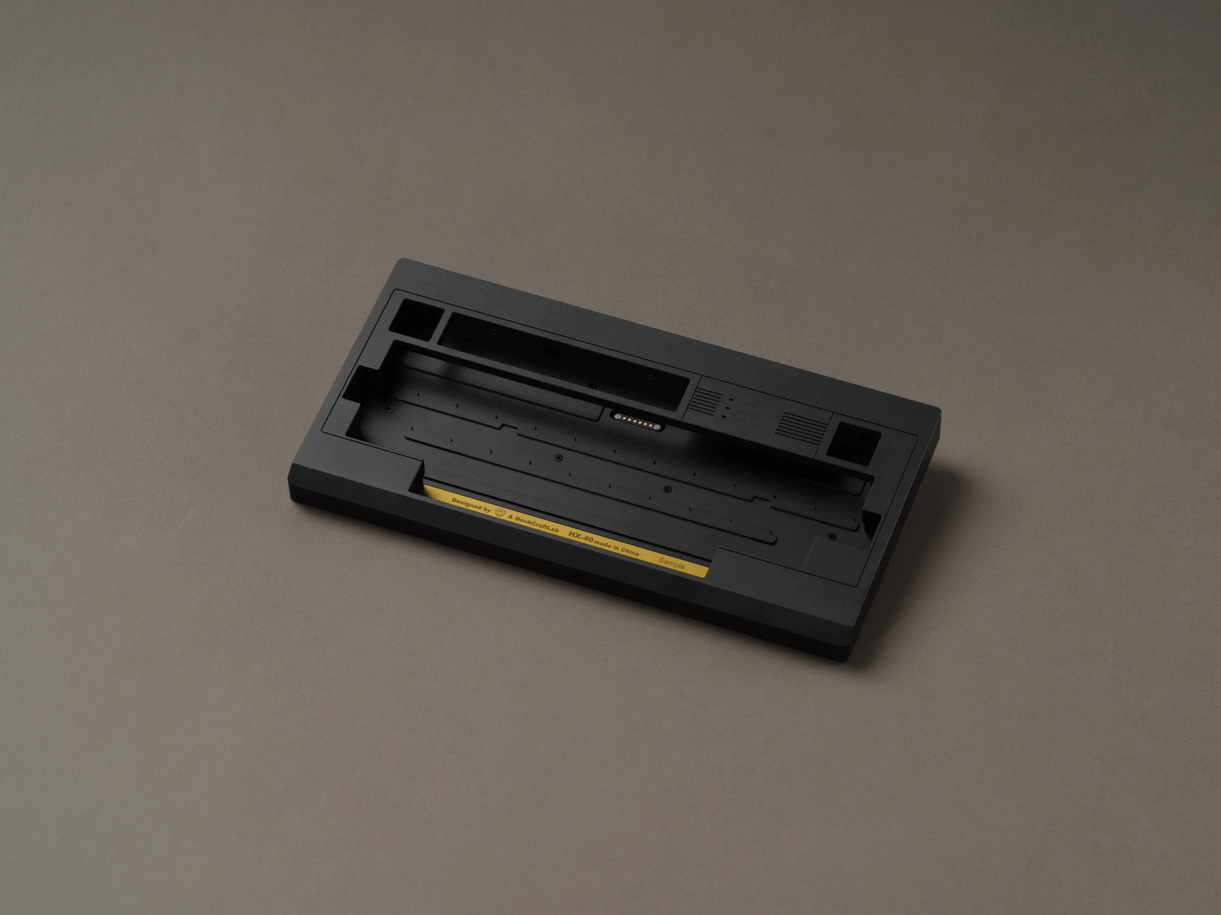

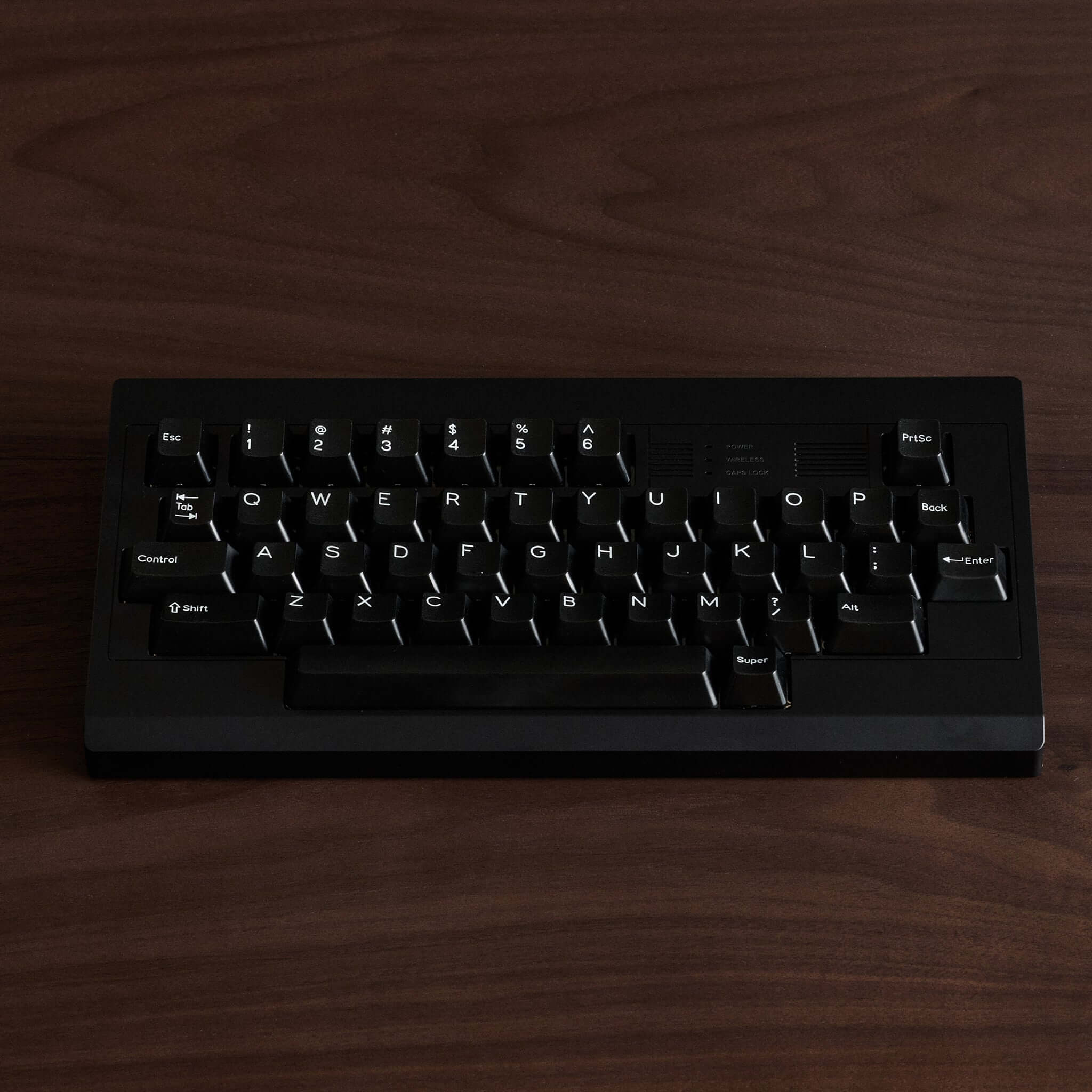

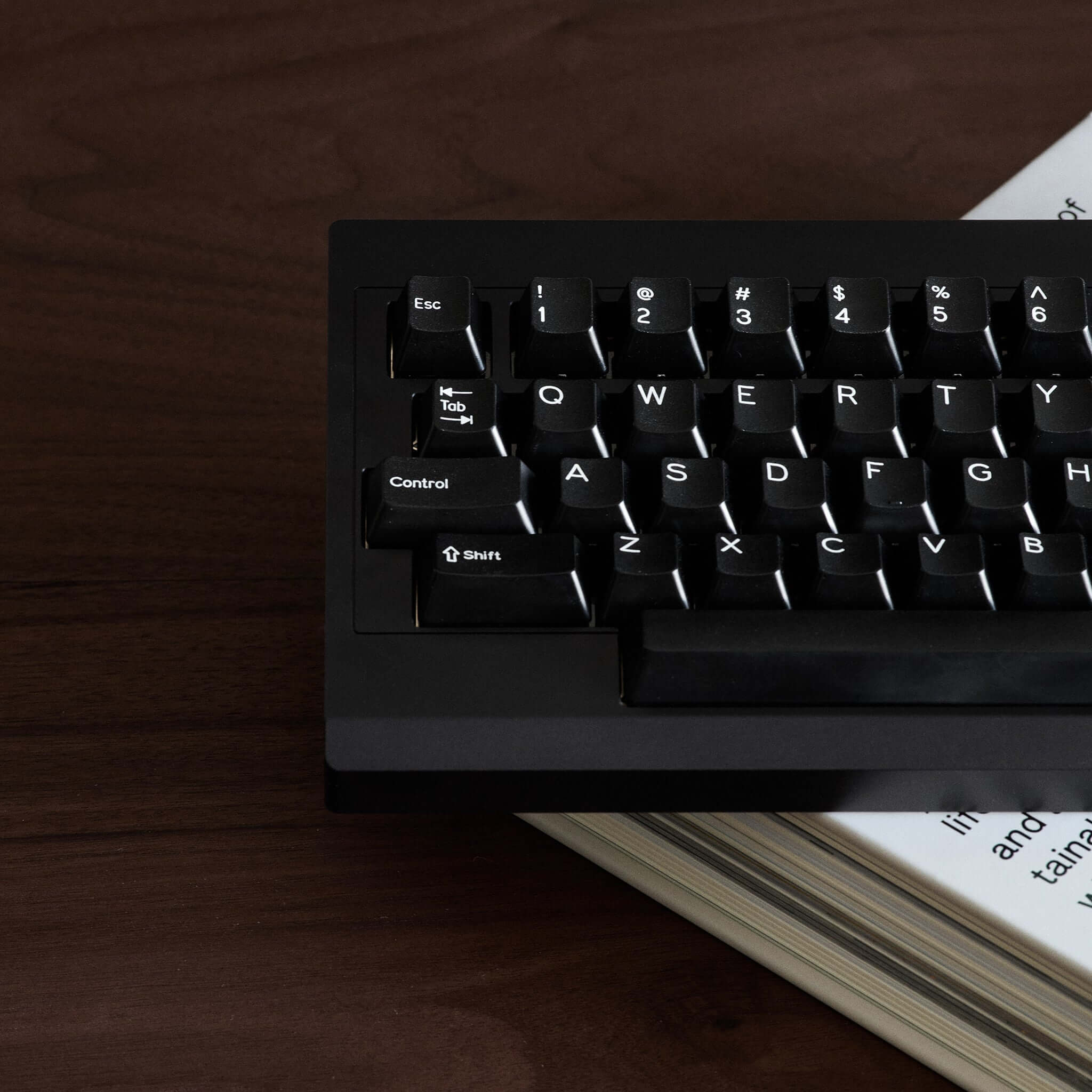

• Black (Gold Weight)

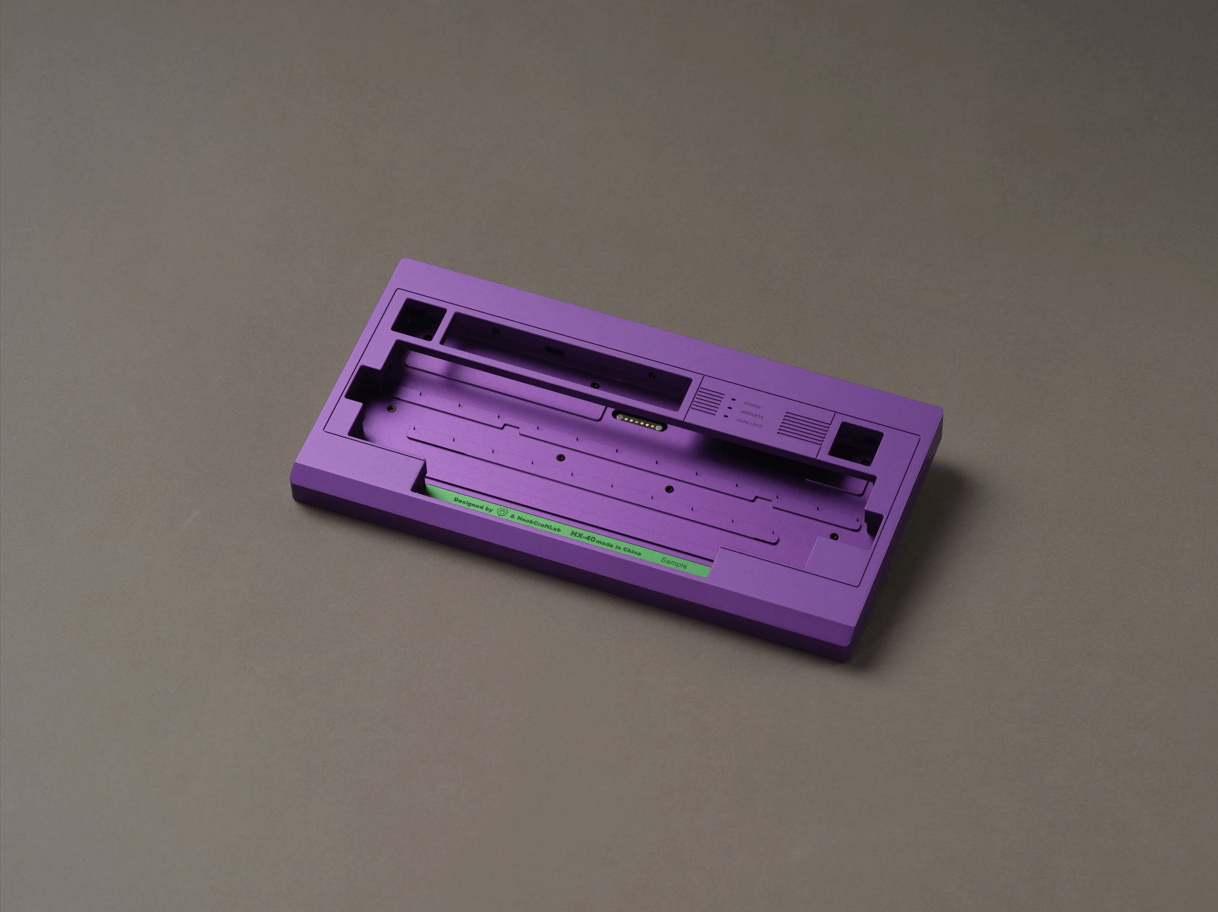

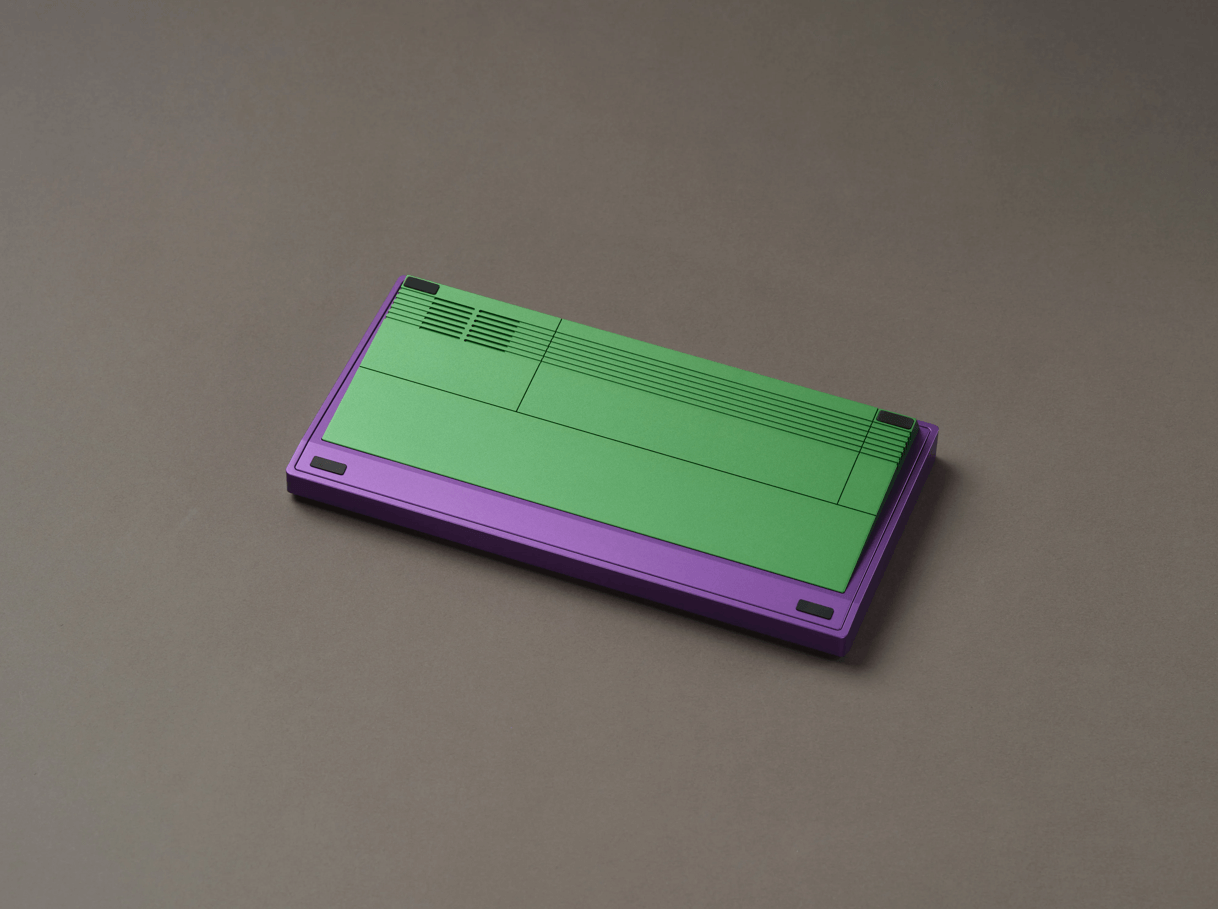

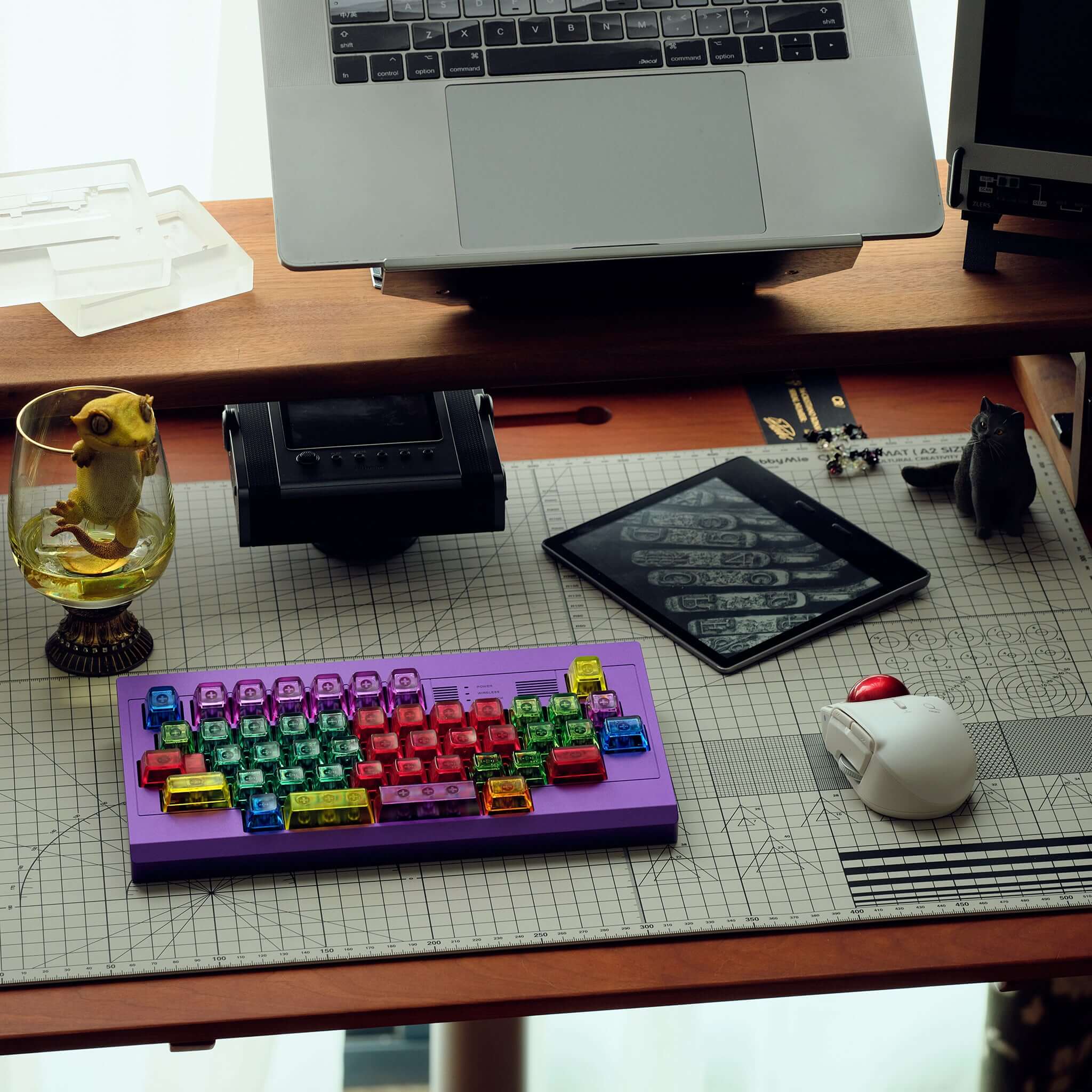

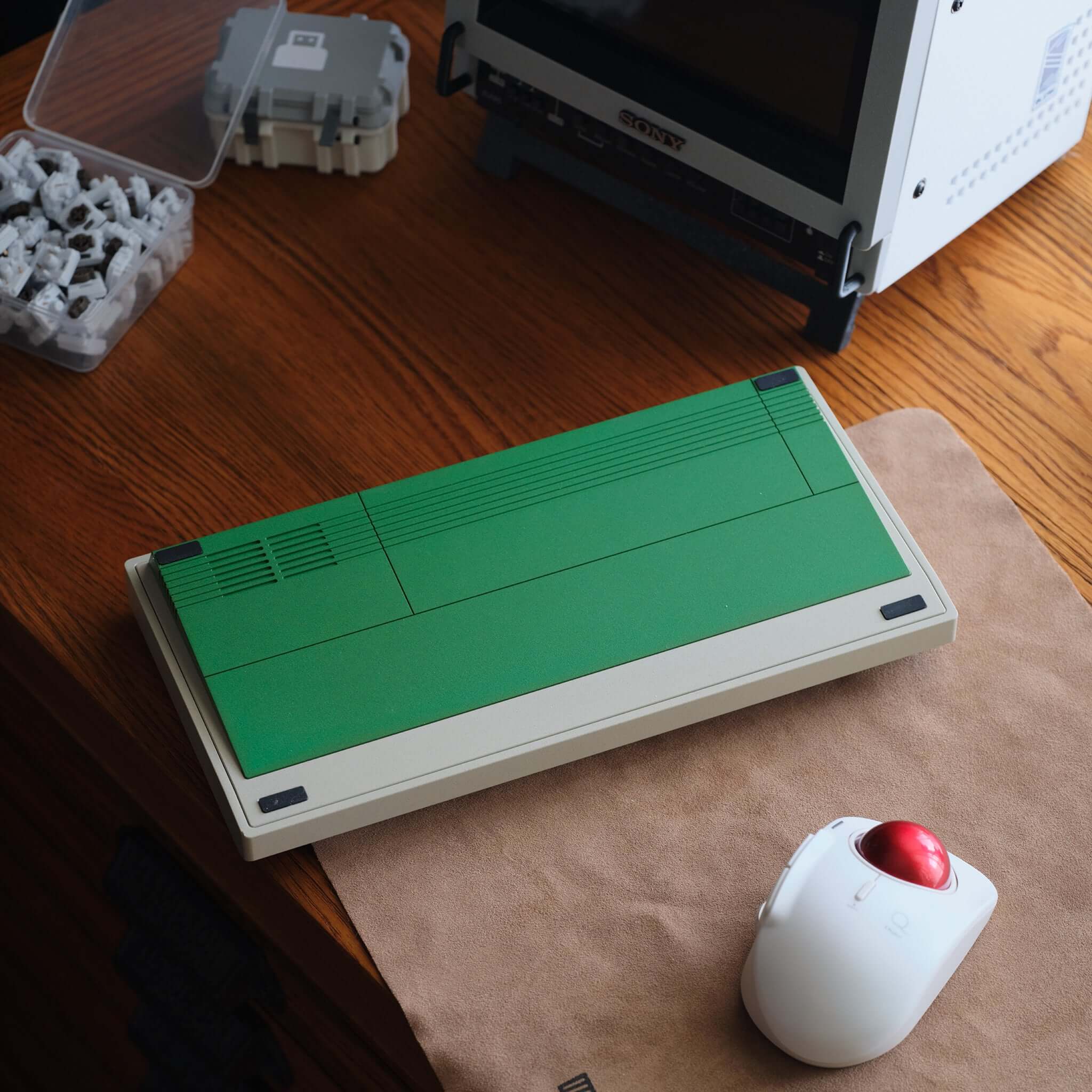

• Purple (Green Weight)

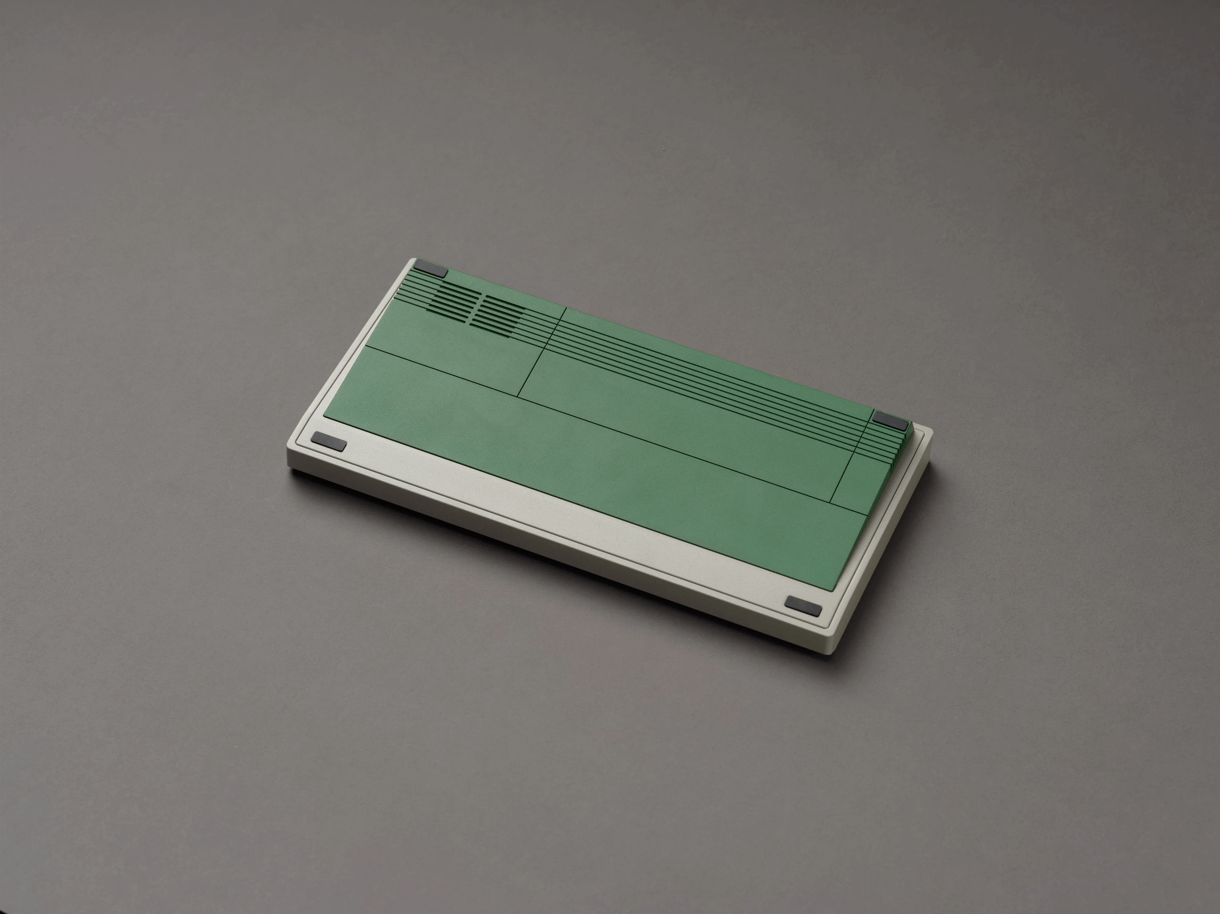

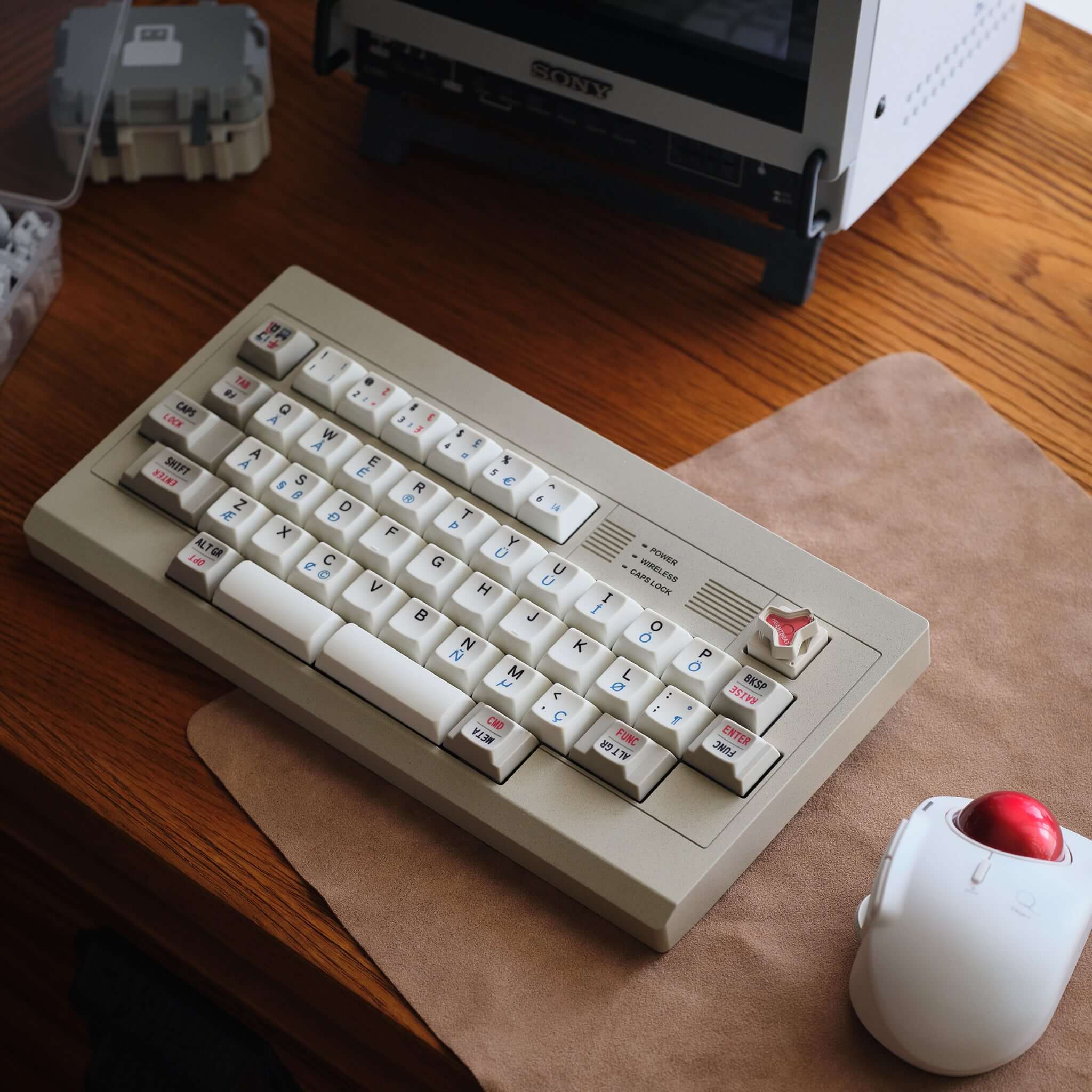

• Classic Beige

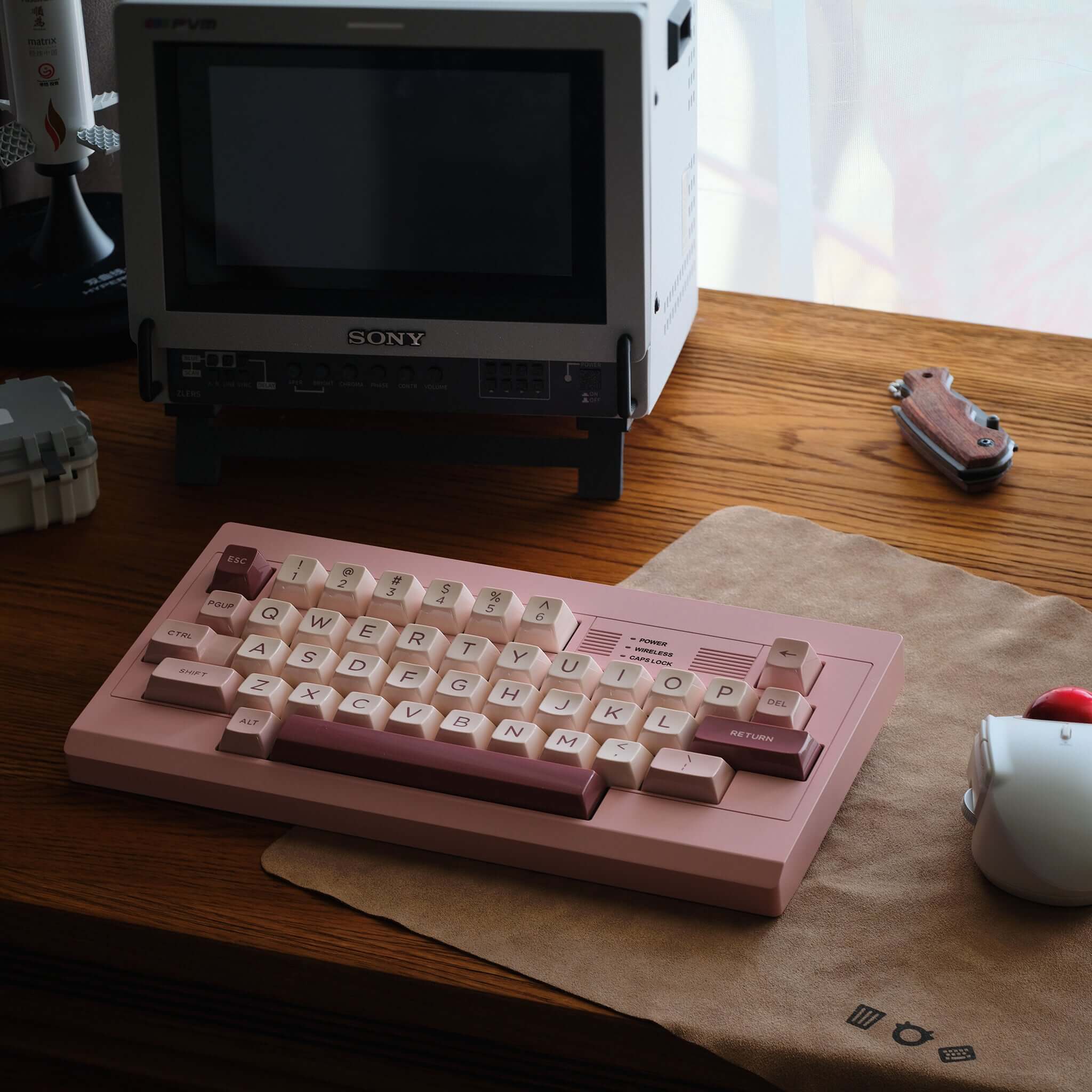

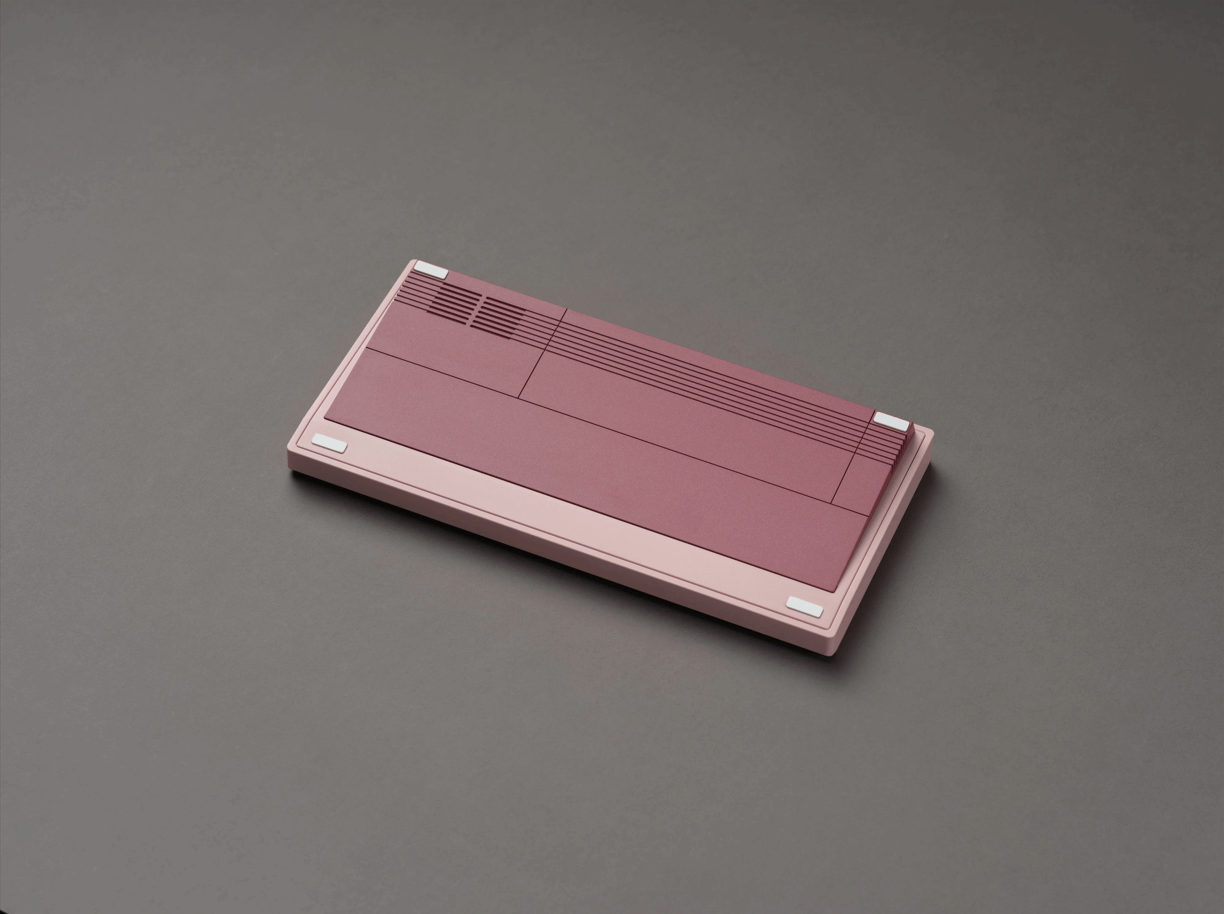

• Why Not Pink

Weight & Dimensions

• Keyboard weight (built): ~1.4 kg

• Packaged weight: ~2.4 kg

• Plate weight:

  • FR4 40 g

  • Aluminium 80 g

  • Stainless Steel 140 g (EC only)

• PCB: ~60 g

Warranty & QC

Warranty is provided by the manufacturer for 6 months for all parts. I will QC cases on arrival and any issues on receipt need to be flagged immediately prior to use. Any issues with PCBs or accessories after use may require direct resolution with the supplier. Please inspect all components upon arrival and prior to building.
