Fe87 TKL Solder PCB (H87 layout)

Manufacturer Introduction:
FE Works - part of the broader Flybeck brand, is producing high-quality PCBs tailored for elite enthusiasts. Their products are designed with precision and compatibility in mind, ensuring seamless integration into various keyboard builds.

Product Description:

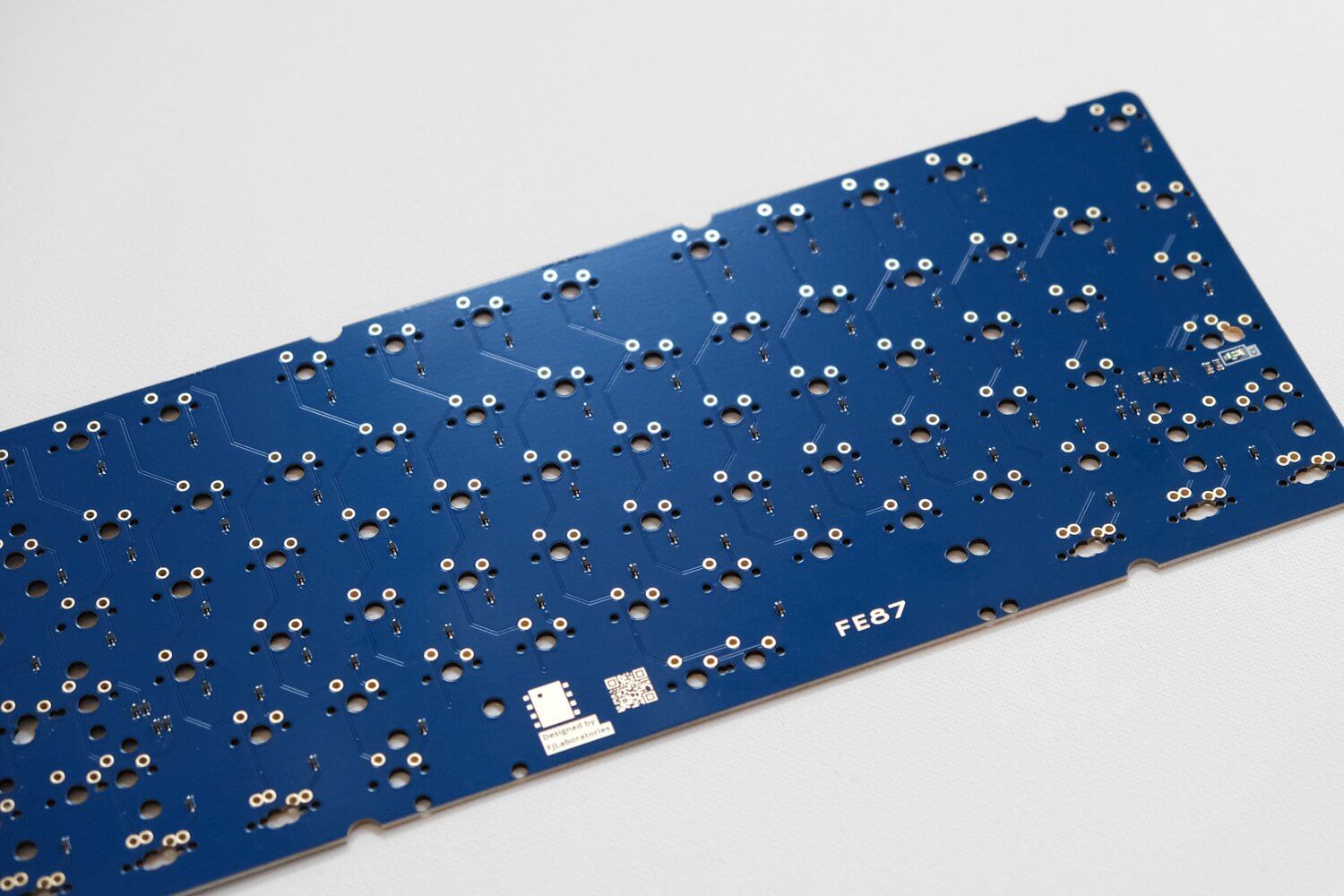

The Fe87 PCB is a premium tenkeyless (TKL) solder PCB based on the H87 footprint. It's designed for those looking to support their TKL builds or future projects. Key features include a pre-soldered JST header, break-off USB-C connector, green Caps Lock and Scroll Lock LEDs, and a north-facing spacebar layout. The PCB is constructed with an FR4 substrate and ground plane, ensuring durability and optimal performance. It's compatible with MX-style switches and has a thickness of 1.6mm.

Specifications:

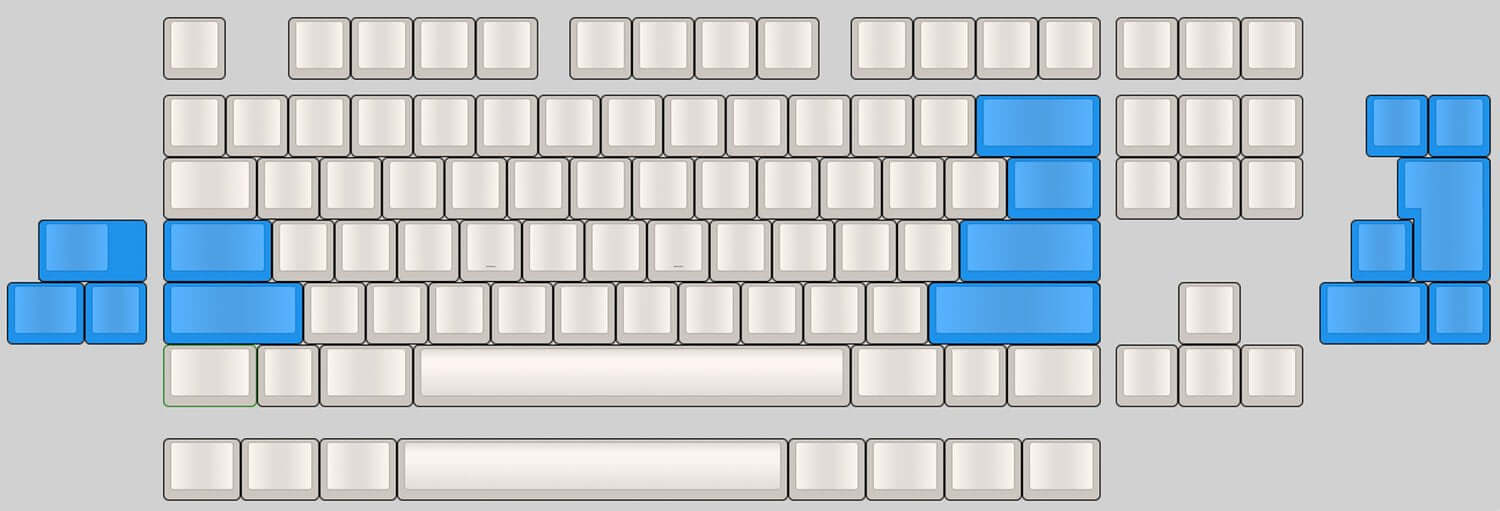

• Layout: F12 TKL, H87 footprint

• Connection: Break-off USB-C

• Header: Pre-soldered JST

• LED Indicators: Green Caps Lock and Scroll Lock

• Material: FR4 substrate with ground plane

• Microcontroller: AT90USB646

• Switch Compatibility: MX-style switches only

• Spacebar Orientation: North-facing

• Thickness: 1.6mm


If you need help determining if this PCB will work with your keyboard please get in touch on either thoccexchange@gmail.com, our contact page or via messenger.
