Cipulot EC PCB - EC65X
Our Designer
Many of you will know Cipulot from the immense contributions he has made to the world of custom mechanical keyboards over the past decade - particularly in the world of EC. Whether it be relentless support on Conical discord servers, or tireless innovation on both his own projects and those that advance the hobby. I am extremely proud to stock his EC PCB range here. We will endeavour to retain all PCBs in stock 365 days a year.

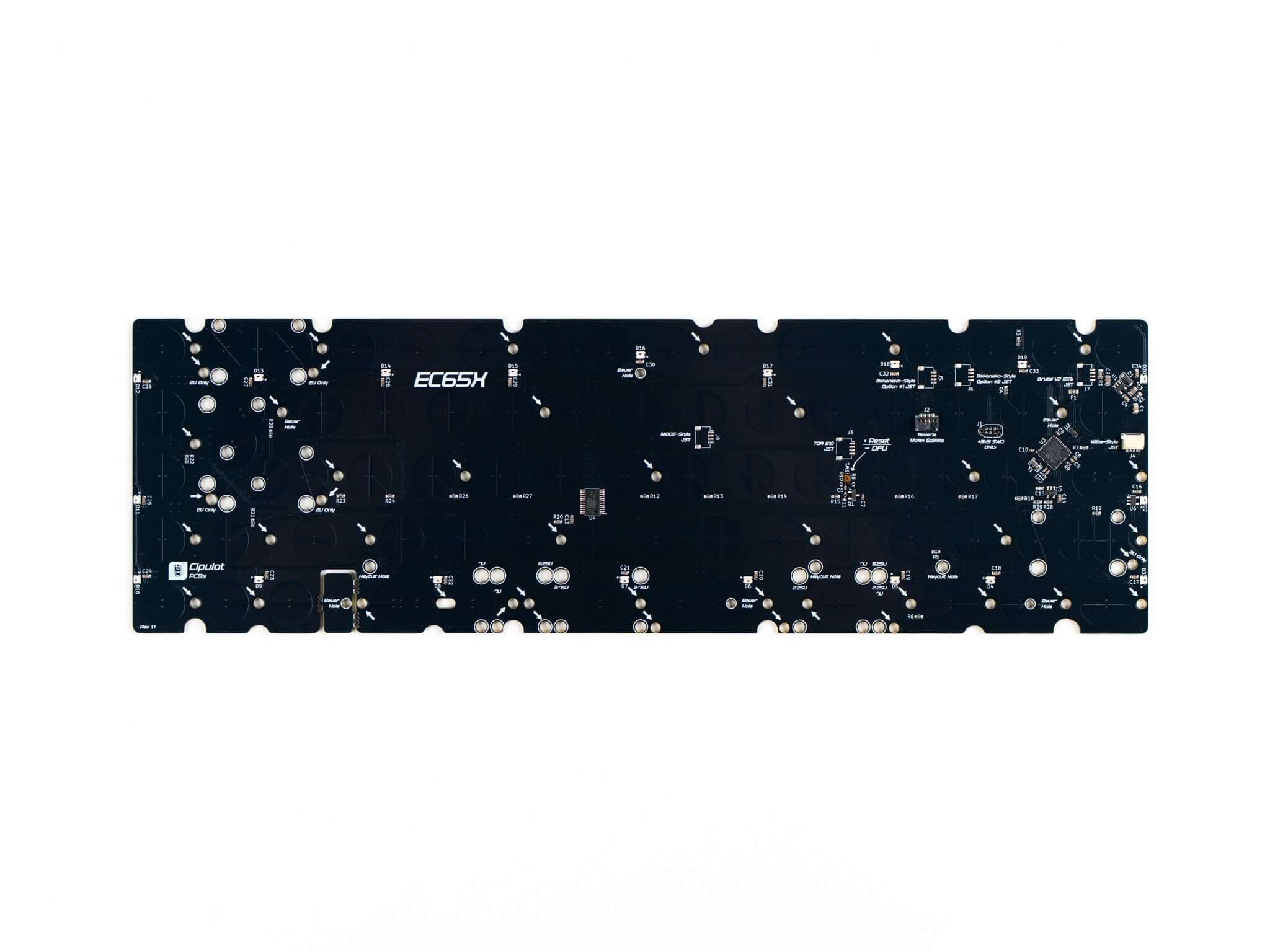

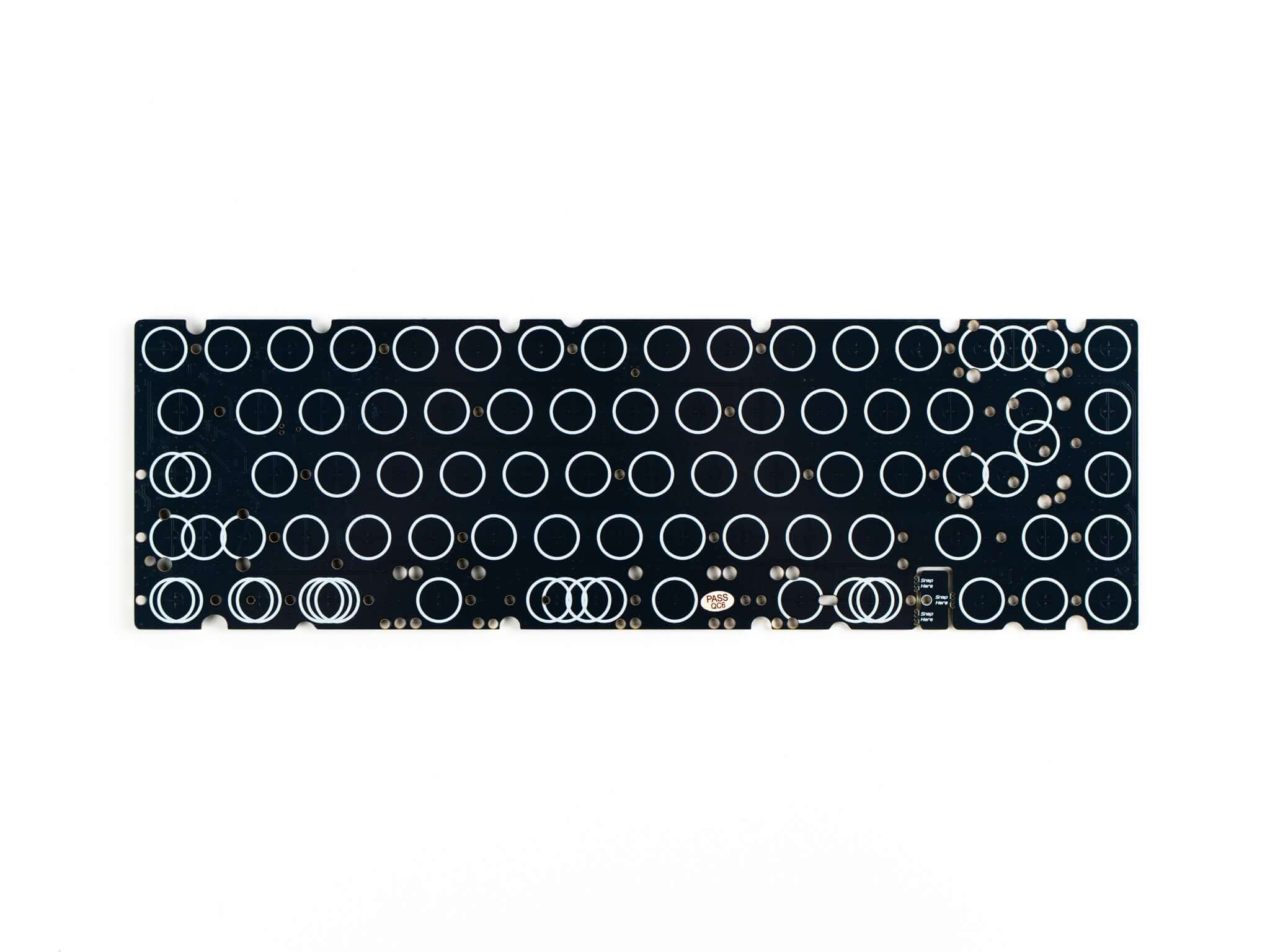

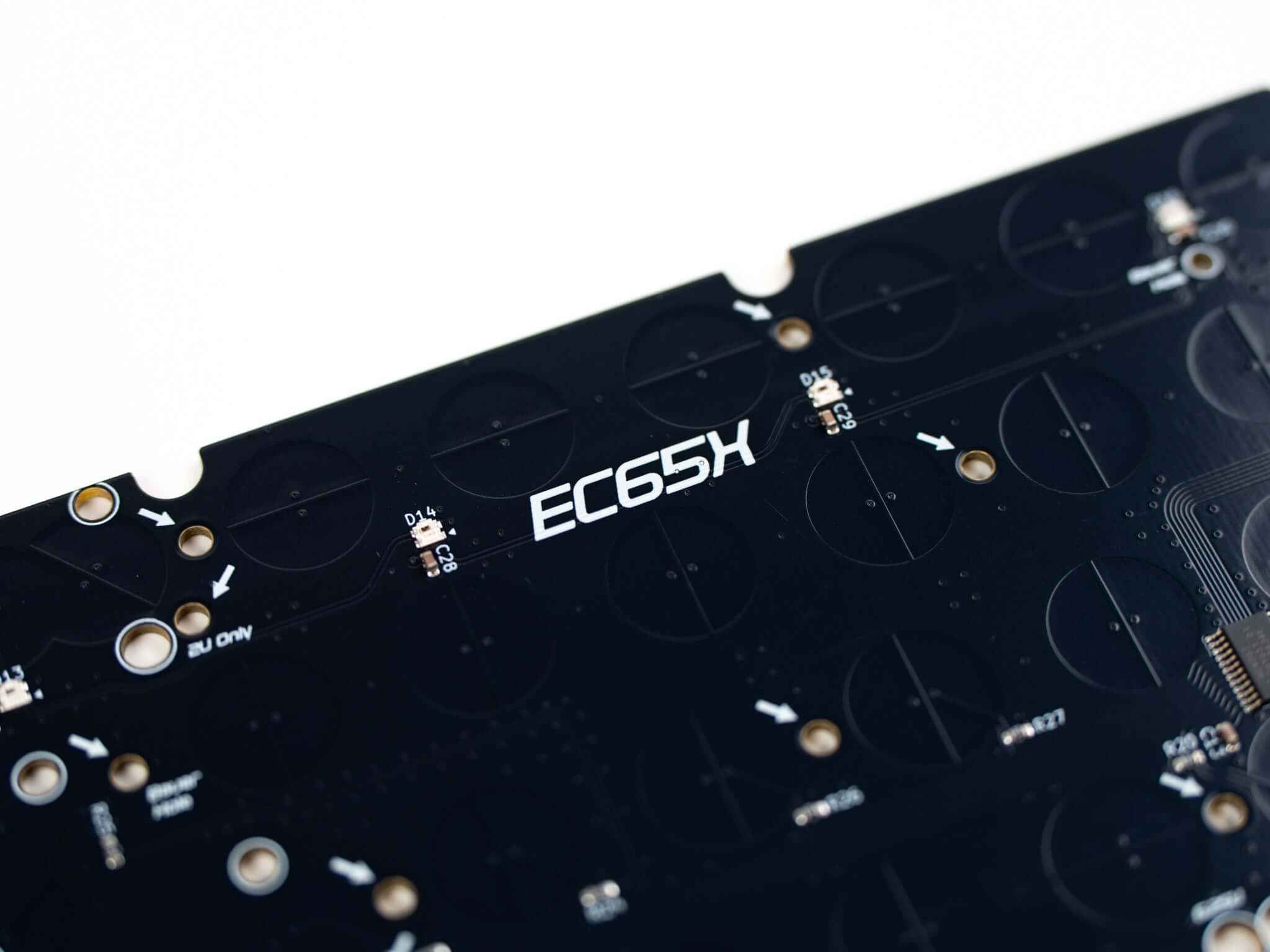

The EC65X PCB
The EC65X is an EC‑ready, VIA/QMK‑compatible PCB designed for 65% keyboards with MX stabilizer support (SE - stabilizer edition). This PCB is for people who wish to make use of either an upgraded PCB in their existing EC keyboard, or who wish to purchase a PCB for their new EC aftermarket case such as the Sho Labs keyboards.
See below for key characteristics:
This is a 65% form factor PCB with Molex and JST headers, and a removeable arrow key blocker.
- Support for ANSI & ISO
- MX PCB mount stabilizer cutouts
- No onboard USB-C
- Cutouts for O-ring compatibility
- JST & Molex header pre-soldered in WIlba position (Bakeneko65, Brutal V2, TGR 910, and Mode65 positions available through soldering). We have experts who can help you do this soldering if needed.
- RGB underglow
- QMK and VIA support
- Calibration, actuation customization, and rapid trigger (beta) available within VIA
- Wired connection only
For compatibility, Guides, and more information, please see Cipulot's Website. Plate generator can be found here.
