Frog TKL Compatible "Topre" EC8X PCB

Description:

Introducing the Frog TKL Compatible EC8X PCB – a custom-designed solution created by one of our very own community members, bringing the smooth, tactile feedback of Topre and electrocapacitive switches to your Frog TKL. Known for their affordability, Frog TKL keyboards make an excellent base for this conversion, allowing you to experience Topre at a fraction of the cost if you already own a Frog TKL. This PCB provides an ideal pathway to try out Topre switches without needing a completely new keyboard.

Why This PCB Was Developed: This project stemmed from a need in the community for an EC-compatible PCB specifically designed for Frog TKL keyboards. Inspired by previous Frog TKL conversion projects, the creator identified a gap for an F13 layout-compatible EC PCB. This led to the development of the EC8X, utilizing custom plate designs and precise spacing for seamless Topre integration. Each production round has a unique theme, with this edition drawing inspiration from the Porsche 944 series, featuring exclusive 944 silkscreen detailing and a limited release of just 16 units.

Key Features:

• Affordable Topre Conversion: Perfect for Frog TKL owners wanting to try Topre switches without the need for an entirely new keyboard.

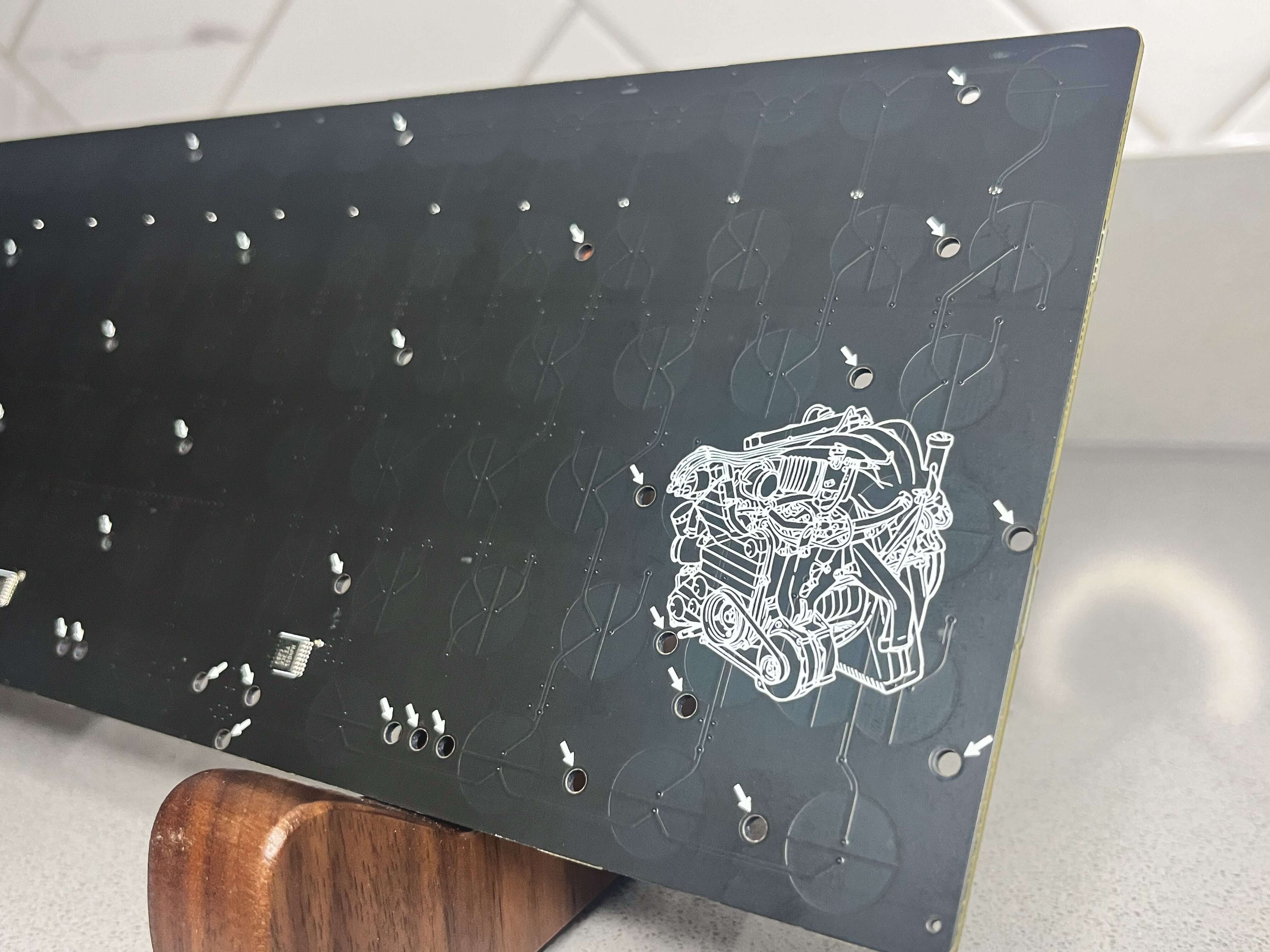

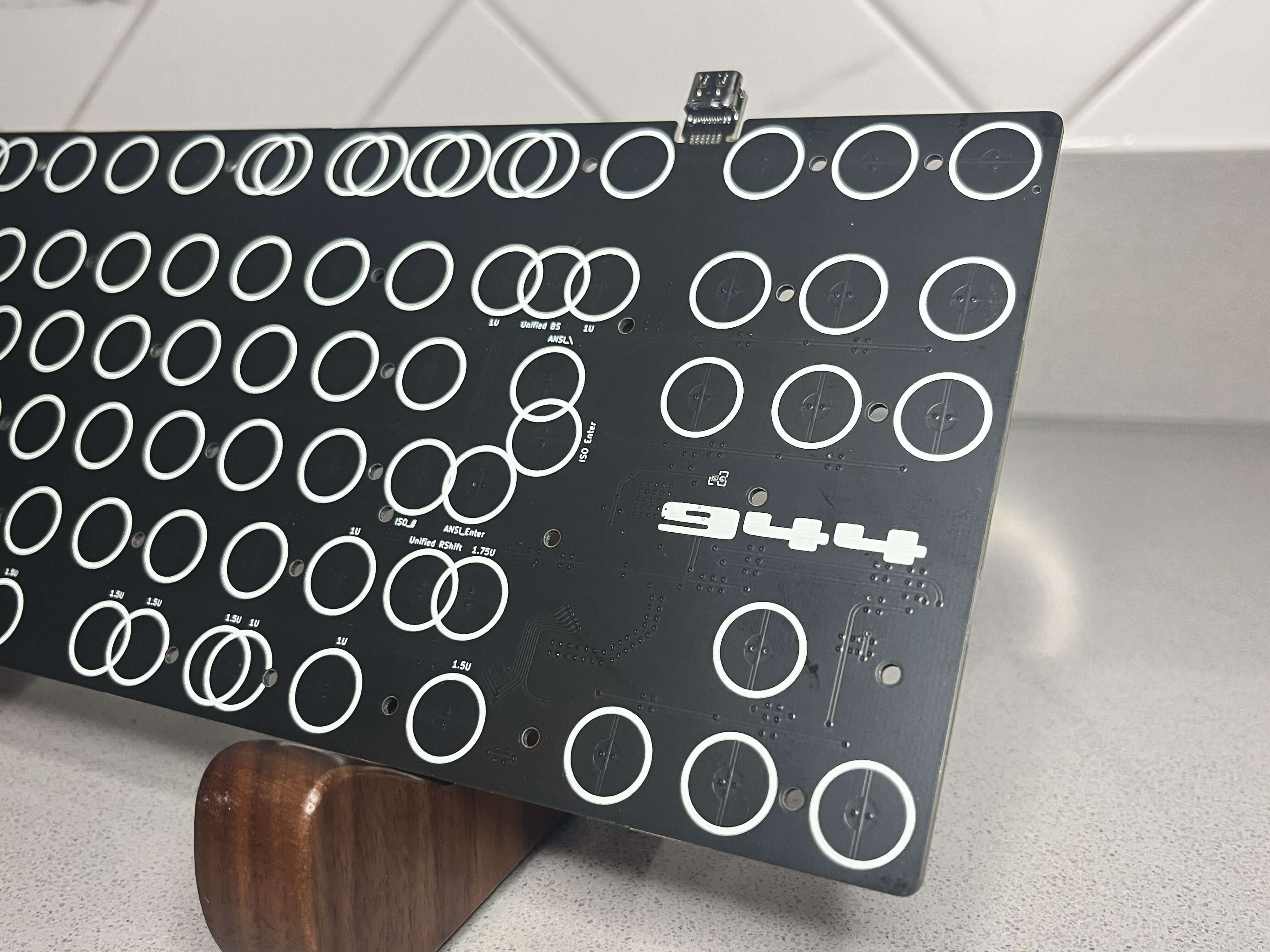

• Inspired Design: This Porsche 944 edition PCB includes unique 944 silkscreen lettering and design details, giving it a distinctive look. Limited to 16 units.
• High-Quality Build: Built to last, with a thickness of 1.6mm and a 2.8mm screw hole diameter for straightforward, secure installation.
• VIA Compatibility: Fully compatible with VIA software, allowing easy key remapping and customization.

Compatibility and Requirements:

• Designed for use with most TKL cases that do not require O-ring cutouts for mounting. This PCB is optimized for top-mount USB C connections, making it compatible with standard Frog TKL builds.
• Important Note: This PCB is not compatible with TKLs requiring O-ring cutouts. An integrated O-ring version is under development for those configurations.

Additional Components Needed:

• Topre Domes: To complete the conversion, you’ll need Topre domes, available separately on Thocc Exchange, which offers the best value for Topre domes on the internet.

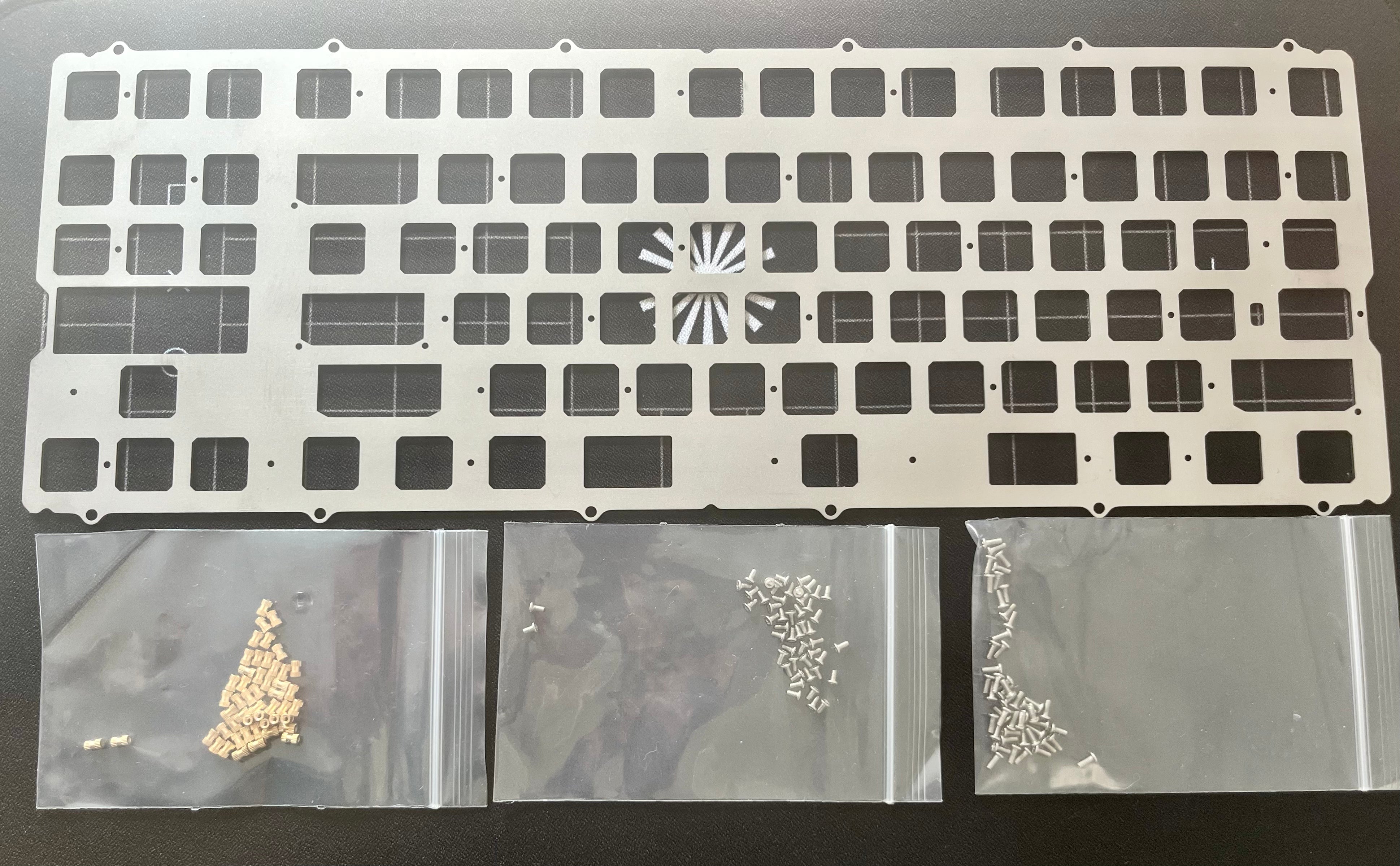

• Conversion Plate: An EC-compatible plate is essential for this setup. A group buy for these plates is coming soon – reach out if you’d like to join!
• Sliders
• Housings
• EC stabilisers
• Springs

What’s Included:

• 1x Frog TKL Compatible EC8X PCB (Porsche 944 Edition)
• Access to Documentation: Detailed guides, compatibility notes, and ongoing support from both the creator and the Thocc Exchange community.

Get Started with Your Conversion:

This limited-run PCB is perfect for Frog TKL owners eager to experience the revered feel of Topre switches. With this accessible and affordable conversion, you can enjoy Topre without needing a whole new keyboard. Act fast to secure one of these exclusive PCBs before they’re gone, and don’t forget to pick up your Topre domes from Thocc Exchange and join the group buy for the conversion plate to complete your setup!
