Dingkey Designs Keyswitch Break-in Machine Gen 3.5 USB-C

Dingkey Designs:

Dingkey Designs has become a respected name in the mechanical keyboard community for their innovative solutions aimed at improving the performance of custom keyboard builds. With a focus on producing high-quality, durable, and efficient equipment, Dingkey Designs creates tools that support enthusiasts in fine-tuning their keyboards to perfection. Known for their break-in machines, Dingkey Designs has consistently released iterations of their products with improved technology and user-focused design features.

Keyswitch Break-in Machine Gen 3.5

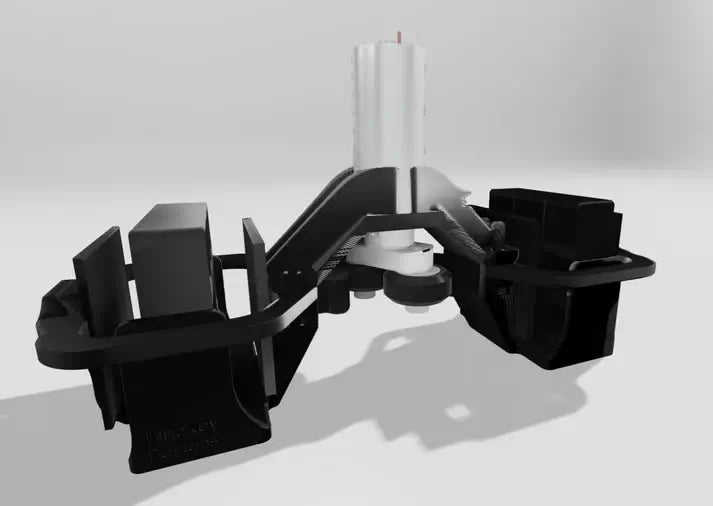

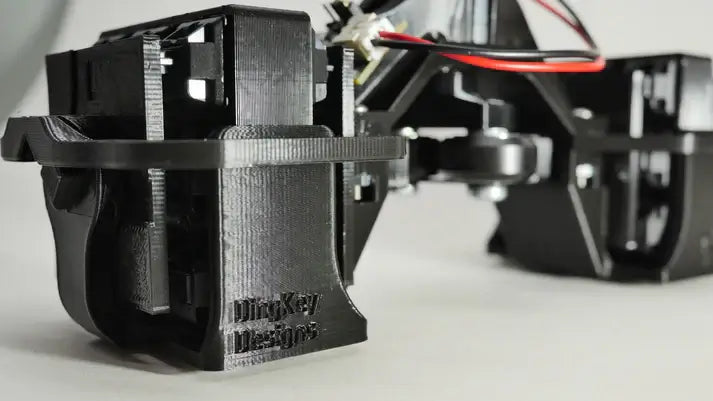

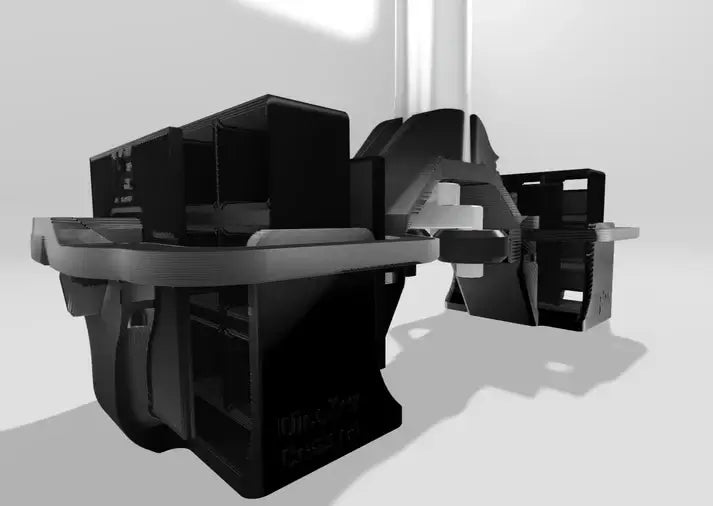

The Dingkey Designs Keyswitch Break-in Machine Gen 3.5 USB-C is the ultimate tool for enthusiasts looking to break in switches with ease and precision. This machine, updated with a CNC aluminum wheel cam and a USB-C powered motor, is designed to handle continuous use for the ultimate switch break-in experience. It supports 36 switches with its base configuration, and with the optional 4-way expansion kit, the capacity doubles to 72 switches. Whether you're preparing a batch of linears or tactiles, the Gen 3.5 is the go-to tool for a smoother typing experience.

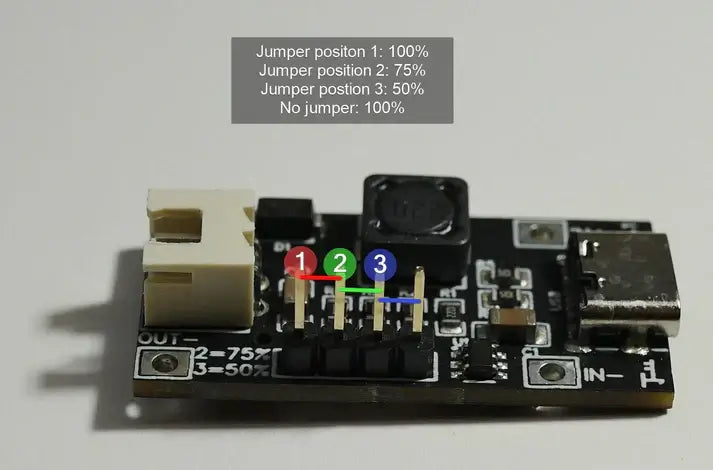

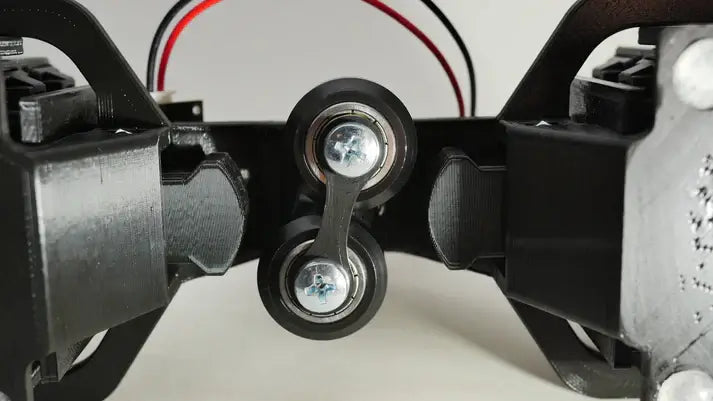

With adjustable speeds of 100%, 75%, and 50%, the machine allows users to tailor the actuation process to their preferences. The Gen 3.5 can hit up to 18,600 actuations per hour at full speed, providing an efficient and smooth break-in process. The machine is equipped with durable ball bearings and POM wheels to reduce wear and tear, and the entire setup comes pre-assembled with everything you need to start breaking in your switches right out of the box.

For those using shorter travel switches, such as BCPS, Dingkey Designs offers an additional long-pole add-on for better travel support. Whether you're working with linears or tactiles, this break-in machine is a must-have for any serious keyboard enthusiast looking for a customized, premium feel.

Specifications:

• Capacity: 36 switches (expandable to 72 with 4-way expansion kit)
• Power Source: USB-C 5V
• Motor: DC motor with metal gearbox
• Weight: 251g
• Dimensions: 200 x 80 x 125mm
• Adjustable Speeds:
  • 100% Speed: 155 RPM, 18,600 actuations/hour, 3.2W peak power
  • 75% Speed: 112 RPM, 13,500 actuations/hour, 2.6W peak power
  • 50% Speed: 73 RPM, 8,750 actuations/hour, 2.1W peak power
• Extras:
  • Optional 4-way expansion kit for up to 72 switches
  • Optional off-center kit for smoother break-in results
  • Long-pole add-on for shorter travel switches

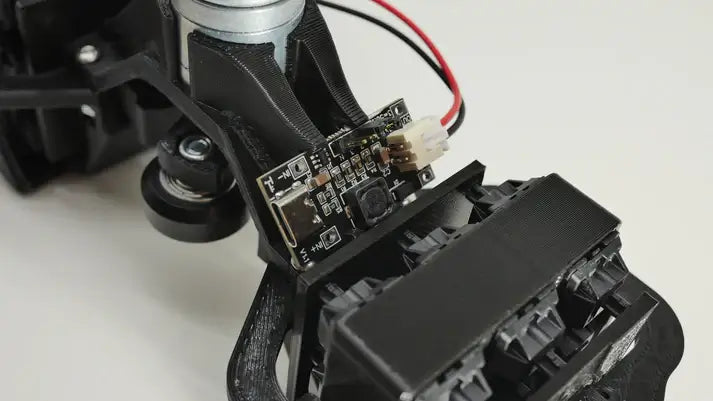

• Includes: Machine with motor, wheels, boost converter, detachable cable, and a 2mm hex key for disassembly
